PIM REAR TRANSITION MODULE · SKU 90060220
XIt2041

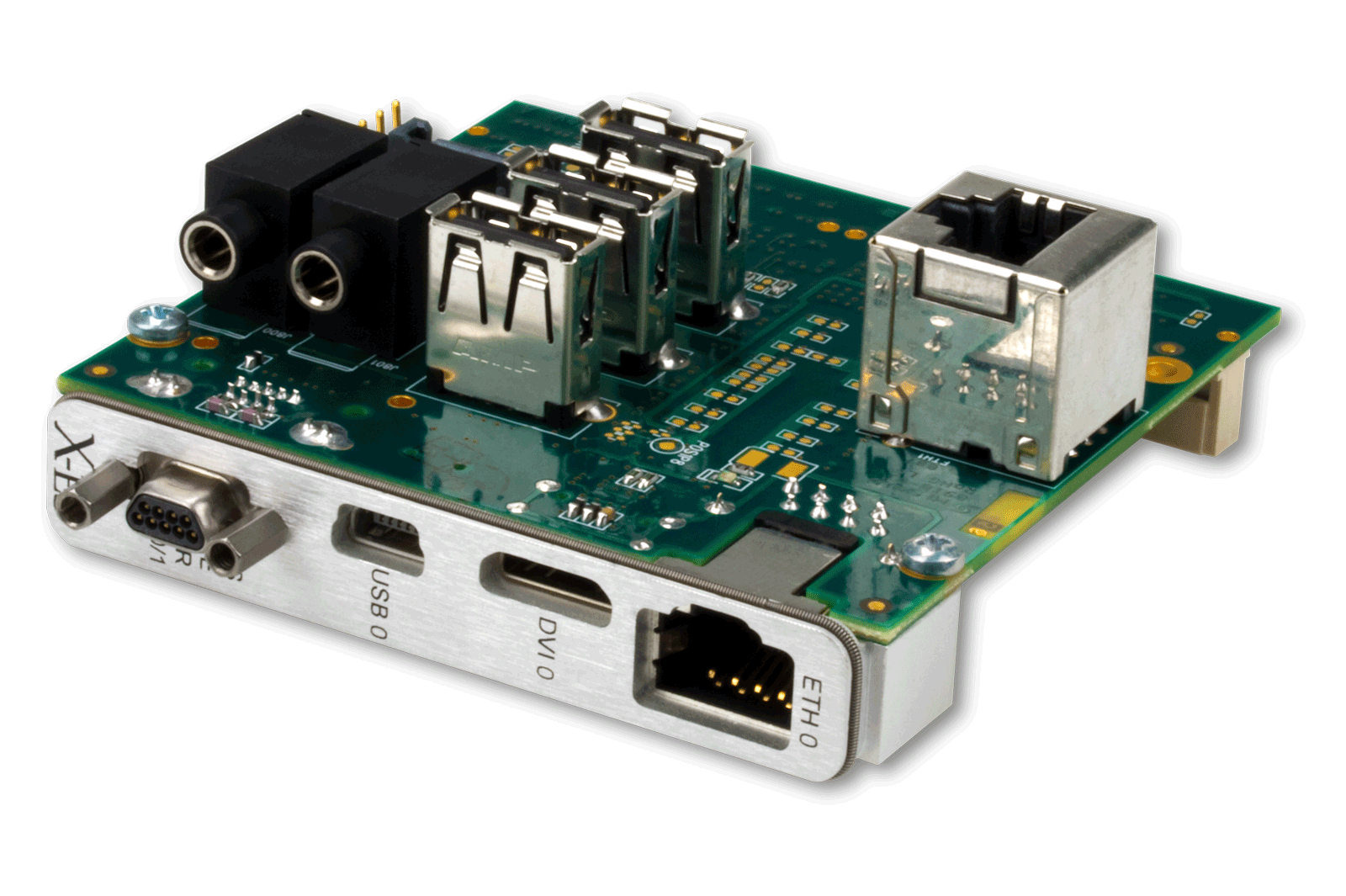

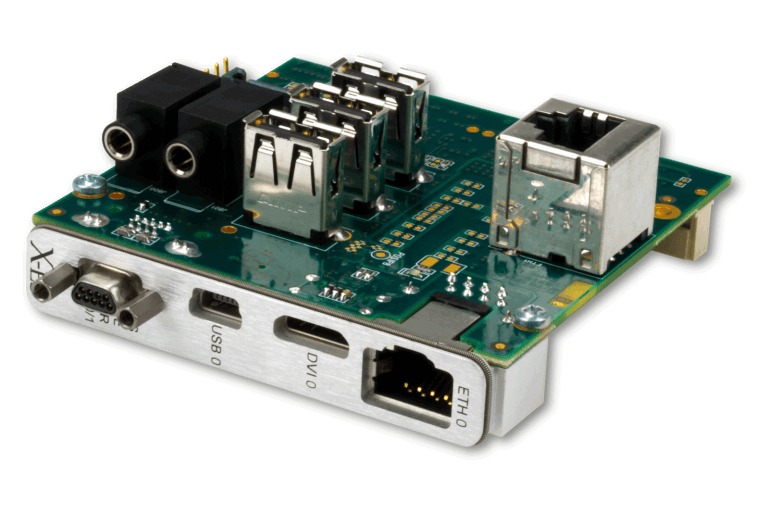

The XIt2041 is a PMC I/O Module (PIM), per the VITA 36 specification, which supports various X-ES XMC/PrPMC products.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XIt2041
The XIt2041 is a PMC I/O Module (PIM), per the VITA 36 specification, which supports various X-ES XMC/PrPMC products.
Carrier Pairings
When installed on the appropriate carrier, such as the XTend3100 or XIt1003, the XIt2041 routes I/O signals from an associated XMC/PrPMC’s rear panel P14 connector to allow connection of these signals to external equipment.
I/O Breakout
The XIt2041 breaks out 10/100/1000BASE-T Ethernet, RS-232 serial, SATA, USB, and DVI signals to the appropriate connectors located on the front panel and rear surface of the card.
Ethernet
- Two 10/100/1000BASE-T Ethernet ports to RJ-45 connectors
Serial
- Two RS-232 serial ports to micro-DB-9 connectors
- RS-422 conversion (optional)
USB
- One USB port to front panel Type Mini-AB connector
- Three USB ports to internal vertical Type A connectors
SATA
- Two SATA ports to internal vertical SATA connectors
DVI
- One DVI port to Mini-HDMI connector
Audio
- Audio input and output ports to front panel 3.5 mm stereo jacks
Physical Characteristics
- PMC I/O Module (VITA 36)
- Dimensions: 74 mm x 69 mm
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements.
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
- Conformal coating available as an ordering option
Accessories
- XTend300 (90070180) – 1x Female DB-9 to 2x Male DB-9 Serial Port Converter
- Cable (30075004) – Serial, Micro D to DB-9, F to M, 3 ft.
- Cable (30075026) – Mini HDMI to HDMI, M to M, 2 Meter
- Cable (30075029) – Mini HDMI to DVI-D, M to M, 2 Meter
XIt2041
PMC I/O Module (PIM) with Gigabit Ethernet, SATA, USB, Serial, and DVI
