6U VPX SINGLE BOARD COMPUTER · SKU 90055155

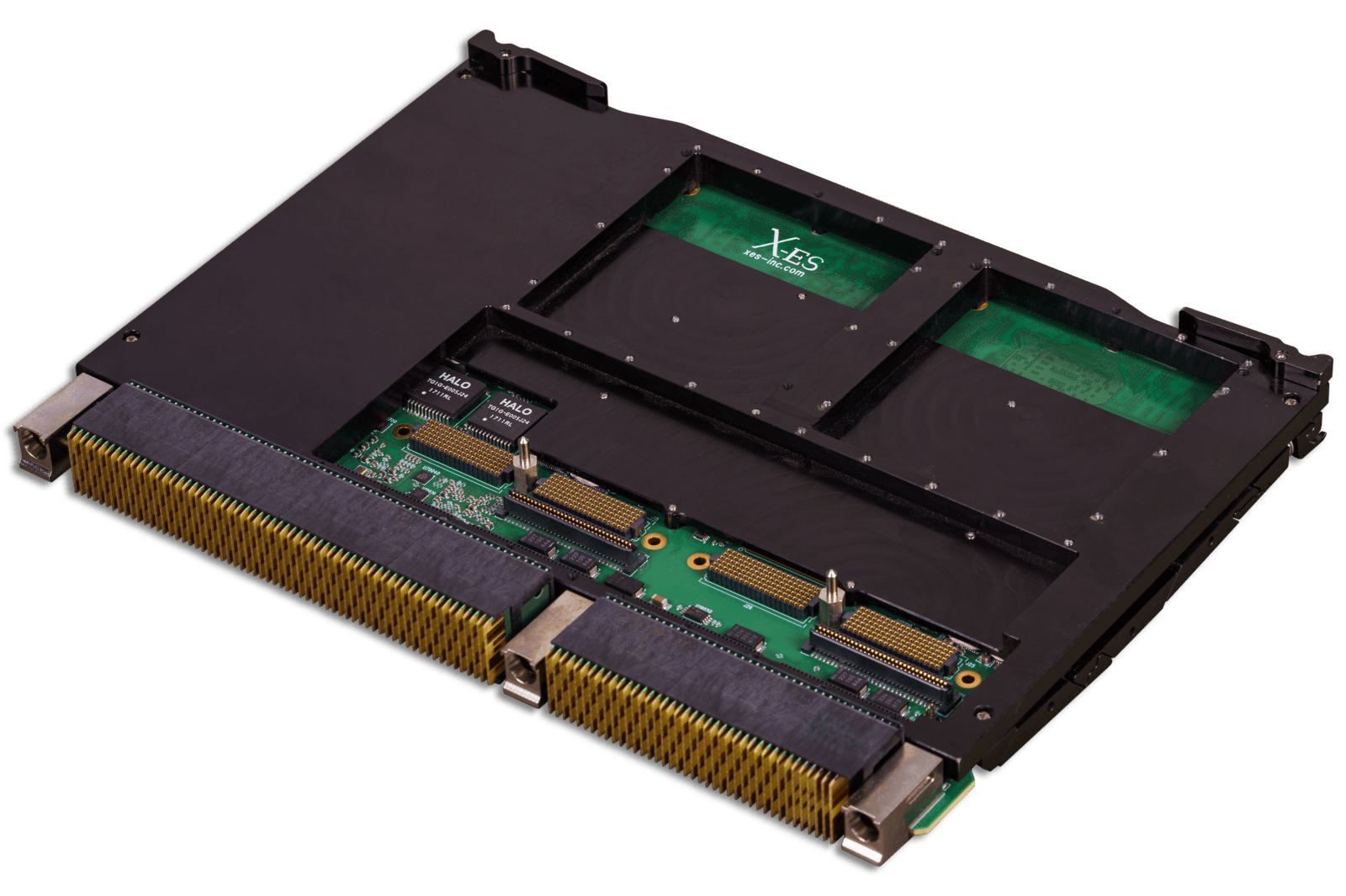

XCalibur5340
The XCalibur5340 is a secure, high-performance 6U VPX single board computer based on the Intel® Core™ Ultra (Series 3) processor (formerly Panther Lake) and aligned to the Sensor Open System Architecture (SOSA) Payload profile (SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0).
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XCalibur5340
The XCalibur5340 is a secure, high-performance 6U VPX single board computer based on the Intel® Core™ Ultra (Series 3) processor (formerly Panther Lake).
Ruggedized, Standards-Based Design
The XCalibur5340 is aligned to the Sensor Open System Architecture (SOSA) Payload (XMC) profile (SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0).
Ideal for ruggedized systems requiring high-bandwidth processing and low power consumption, the XCalibur5340 delivers superior performance and efficiency for today’s network information processing and high performance embedded computing applications.
Security & Data Protection
The XCalibur5340 integrates SecureCOTS™ technology with a Microchip PolarFire™ System-on-Chip (SoC) FPGA for hosting custom functions to protect data from being modified or observed and provides an ideal solution when stringent security capabilities are required.
Memory & Storage
The XCalibur5340 supports up to 64 GB of LPDDR5 SDRAM with in-band ECC in eight channels and up to 1 TB of onboard NVMe storage, with optional AES-128/256 TCG Opal 2.0 Self-Encrypting Drive (SED) support.
I/O & Connectivity
The XCalibur5340 also provides fast and efficient I/O, including 100GBASE-KR4, 25GBASE-KR, and 10/100/1000BASE-T Ethernet, USB 2.0, PCI Express, and RS-232 or RS-422/485 serial ports through the backplane connectors. An integrated M.2 site supports a PCI Express connection to the Intel® Core™ Ultra processor.
Software Support
Wind River VxWorks, X-ES Enterprise Linux (XEL), and Linux Yocto Board Support Packages (BSPs) are available.
Processor
- Supports Intel® Core™ Ultra (Series 3) processors (formerly Panther Lake)
Memory
- Up to 64 GB of LPDDR5 SDRAM with in-band ECC
- Up to 1 TB of onboard NVMe storage with optional Self-Encrypting Drive (SED) offering AES-128/256 TCG Opal 2.0 hardware encryption support
- 64 MB NOR boot flash
- 64 kB EEPROM
Security and Management
- Microchip PolarFire™ SoC FPGA with 256 MB SPI NOR flash
- Designed with SecureCOTS™ technology to support enhanced security and trusted computing
- System voltage monitor, power-on/reset control, non-volatile write-protection control
- Trusted Platform Module (TPM) 2.0
- IPMI Controller (IPMC), supporting Tier 3 operating mode
VPX (VITA 46) P0 I/O
- Two IPMB connections to an IPMI Controller (IPMC)
VPX (VITA 46) P1 I/O
- One 100GBASE-KR4 Ethernet port
- One maintenance serial port, software configurable as UART or RS-232
VPX (VITA 46) P2 I/O
- One x8 PCI Express Gen4-capable interface
VPX (VITA 46) P3 I/O
- P64s to J24 (optional)
VPX (VITA 46) P4 I/O
- Two 25GBASE-KR Ethernet ports
- Two 10/100/1000BASE-T Ethernet ports
- Two USB 2.0 ports
- Two RS-232 or one RS-422/485 serial ports
- One x2 PCI Express Gen4-capable interface
- One DisplayPort or HDMI interface
VPX (VITA 46) P5 I/O
- One maintenance serial port, software configurable as UART or RS-232
- X24s+X12d+X8d
VPX (VITA 46) P6 I/O
- XMC J16 I/O per VITA 46 x24s+x12d+x8d (optional)
XMC
- x4 PCI Express Gen4-capable interface to J15
- x4 PCI Express Gen4-capable interface to J25
Front Panel I/O
- One 10/100/1000BASE-T Ethernet port (optional)
- One USB 2.0 port (optional)
- One DisplayPort++ interface (optional)
M.2 Site
- Supports one x2 PCI Express Gen4-capable interface, key M
- Supports double-sided modules up to M.2 2230-D2-M
Software Support
- RDMA over Converged Ethernet (RoCE) v2 internet layer protocol support
- UEFI firmware
- Wind River VxWorks BSP
- X-ES Enterprise Linux (XEL) BSP
- Linux Yocto BSP
- Contact factory for availability of Microsoft Windows drivers and other operating systems
Physical Characteristics
- 6U VPX conduction-cooled form factor
- Supports SOSA Payload (XMC) profile (SLT6-PAY-4F1Q1H4U1T1S1S1TU2U2T1H-10.6.3-0)
- SOSA-aligned to AMPS Payload profile MODA6-12.6.3-1-0-F2C-(1E18)(P4D-N)(2E15-2E3)(1P4U,~1P4U-D5-U1-U1-M3/M4/M5-G1-G2)\(N\)\(N\)<N-N><XB0> (compatibility with other profiles may be possible, contact factory for options)
- Dimensions: 233 mm x 160 mm
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements. Additional ruggedization levels may also be possible to support.
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 5 (contact factory for level 1 availability)
- Conformal coating available as an ordering option
- Thermal performance will vary based on CPU frequency and application
Power Requirements
- Power will vary based on configuration and usage. Please consult factory.
Accessories
- XIt1055 (90060525) – 6U VPX I/O Transition Module for X-ES Single Board Computers
- XPand1015 (90075305) – Two-Slot 6U VPX Development Platform for Conduction-Cooled Modules with RTM I/O
XCalibur5340
Intel® Core™ Ultra (Series 3) Processor-Based 6U VPX Module with 64 GB of LPDDR5 and Microchip PolarFire™ SoC FPGA
