ACCESSORY · SKU 90075480-1
XPand6240 Development Kit
The XPand6240 Development Kit is provided to simplify and speed up development with the XPand6240 rugged system.
The kit breaks out the XPand6240’s I/O to development-friendly commercial connectors and includes power supplies for powering the unit from standard 120 VAC wall outlets.
The XPand6240 Development Kit is available as an accessory to select X-ES products and is not sold separately.
Product Lifecycle
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
X-ES also offers comprehensive configuration management solutions that extend product support and availability beyond final sale, keeping systems running long after standard end-of-life milestones.
Introduction to XPand6240 Development Kit
The XPand6240 Development Kit is provided to simplify and speed up development with the XPand6240 rugged system.
I/O & Connectivity
The kit breaks out the XPand6240’s I/O to development-friendly commercial connectors and includes power supplies for powering the unit from standard 120 VAC wall outlets.
Included Modules

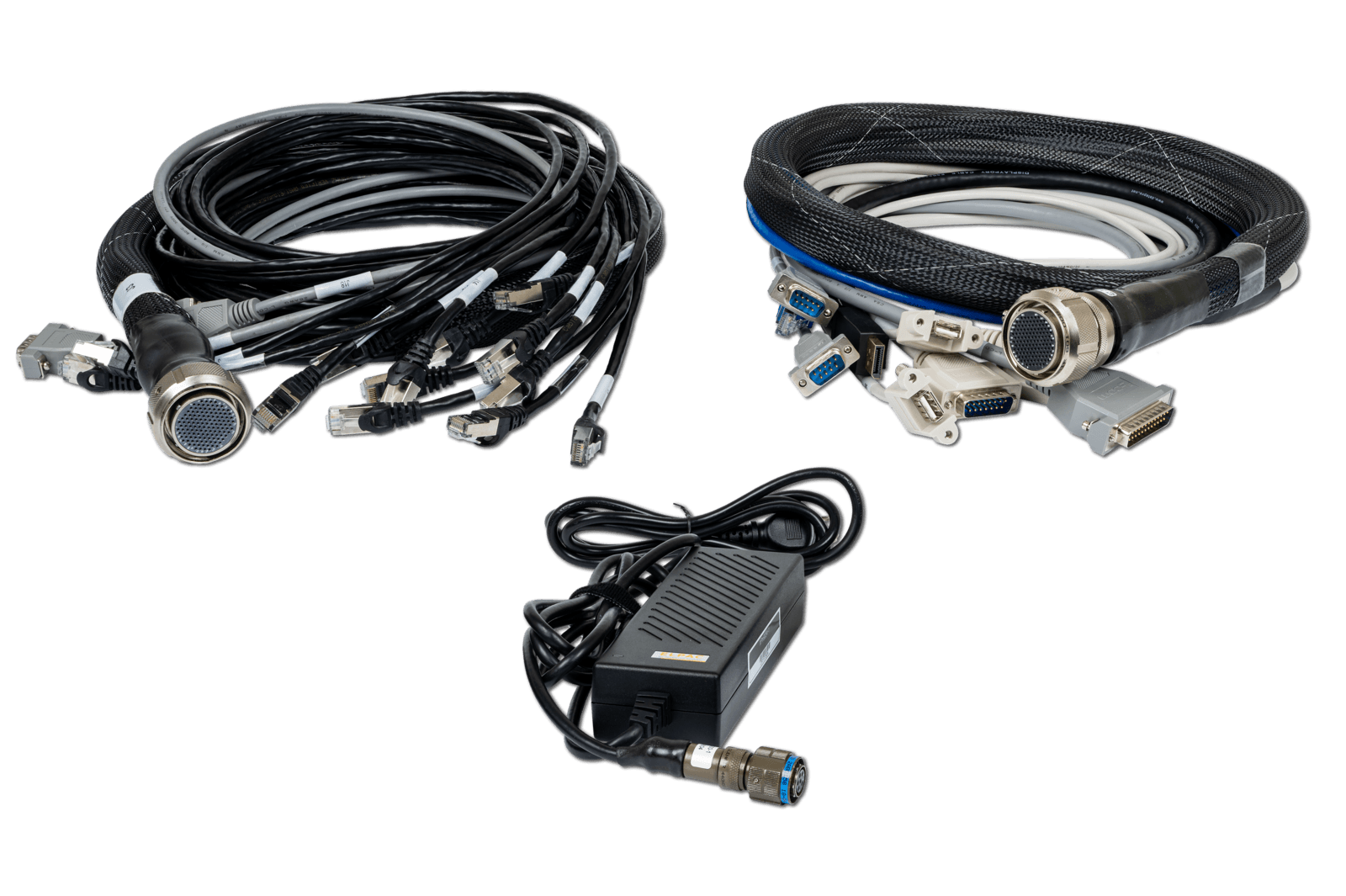

This development kit consists of the XPm9004 120 VAC to 24 V DC power supply, the XTend5114 breakout cable to the J2 interface, and the XTend5117 breakout cable to the J3 interface.
J1 Interface
- XPm9004 (9007200-1) 24 V power supply, AC to DC, six-pin D38999 connector with A/C cord
J2 Interface
- XTend5114 (90073655-3) breakout cable for XPedite8270
- Two RS-232 serial ports via DB-9 male connectors
- Two USB 2.0 ports via Type A female connectors
- One Ethernet port via CAT6a cable terminated with RJ-45 connector
- One DisplayPort male connector
- One D-sub 15-pin male connector for GPIO
- One D-sub 15-pin male and one D-dub 25-pin male connectors for XMC I/O
J3 Interface
- XTend5117 (90073800-1) breakout cable
- Two RS-232 serial ports via DB-9 male connectors
- 13 Ethernet ports (only 12 ports supported with the XPand6240) via CAT6a cables terminated with RJ-45 connectors
Recommended Operating Environment
The components of this kit are intended for development purposes. Using the kit outside of the operating ranges listed below is not recommended and may result in damage to the cables, power supply, and/or system itself.
- Cables: -10°C to 75°C
- Power Supply: 0°C to 40°C (180W) / 60°C (90W)
Accessories
- XPm9004-1 (9007200-1) – 24 V Power Supply, AC to DC, Six-Pin D38999 Connector with A/C Cord
- XTend5114-3 (90073655-3) – Breakout Cable for XPedite8270
- XTend5117-1 (90073800-1) – Breakout cable
XPand6240 Dev. Kit
Rapid-Prototyping Development Kit for the XPand6240 Rugged System
