XPand6241 Development Kit
The XPand6241 Development Kit is provided to simplify and speed up development with the XPand6241 rugged system.
The kit breaks out the XPand6241’s I/O to development-friendly commercial connectors and includes power supplies for powering the unit from standard 120 VAC wall outlets.
The XPand6241 Development Kit is available as an accessory to select X-ES products and is not sold separately.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XPand6241 Development Kit
The XPand6241 Development Kit is provided to simplify and speed up development with the XPand6241 rugged system.
I/O & Connectivity
The kit breaks out the XPand6241’s I/O to development-friendly commercial connectors and includes power supplies for powering the unit from standard 120 VAC wall outlets.
Included Modules

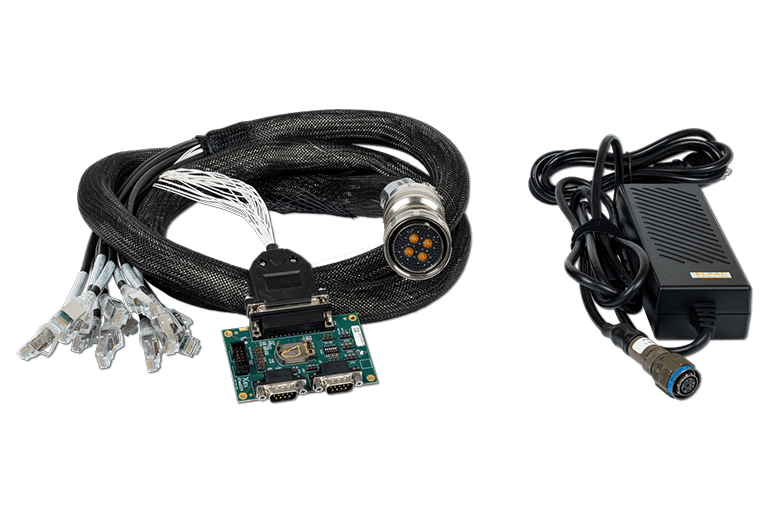

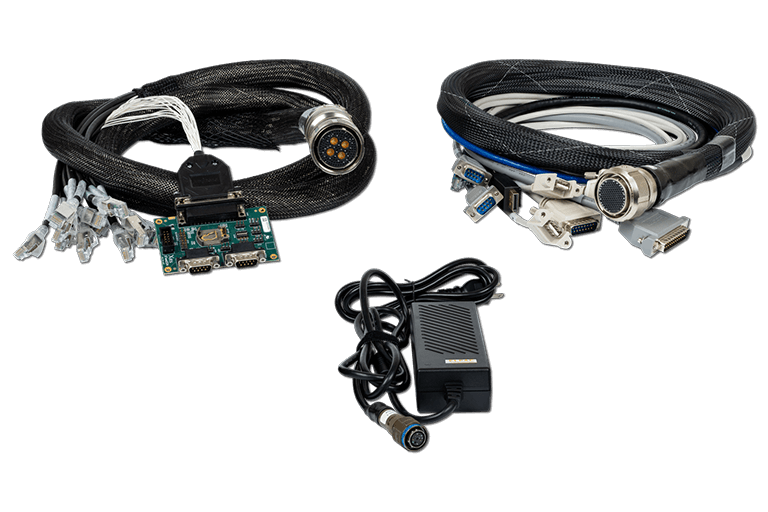

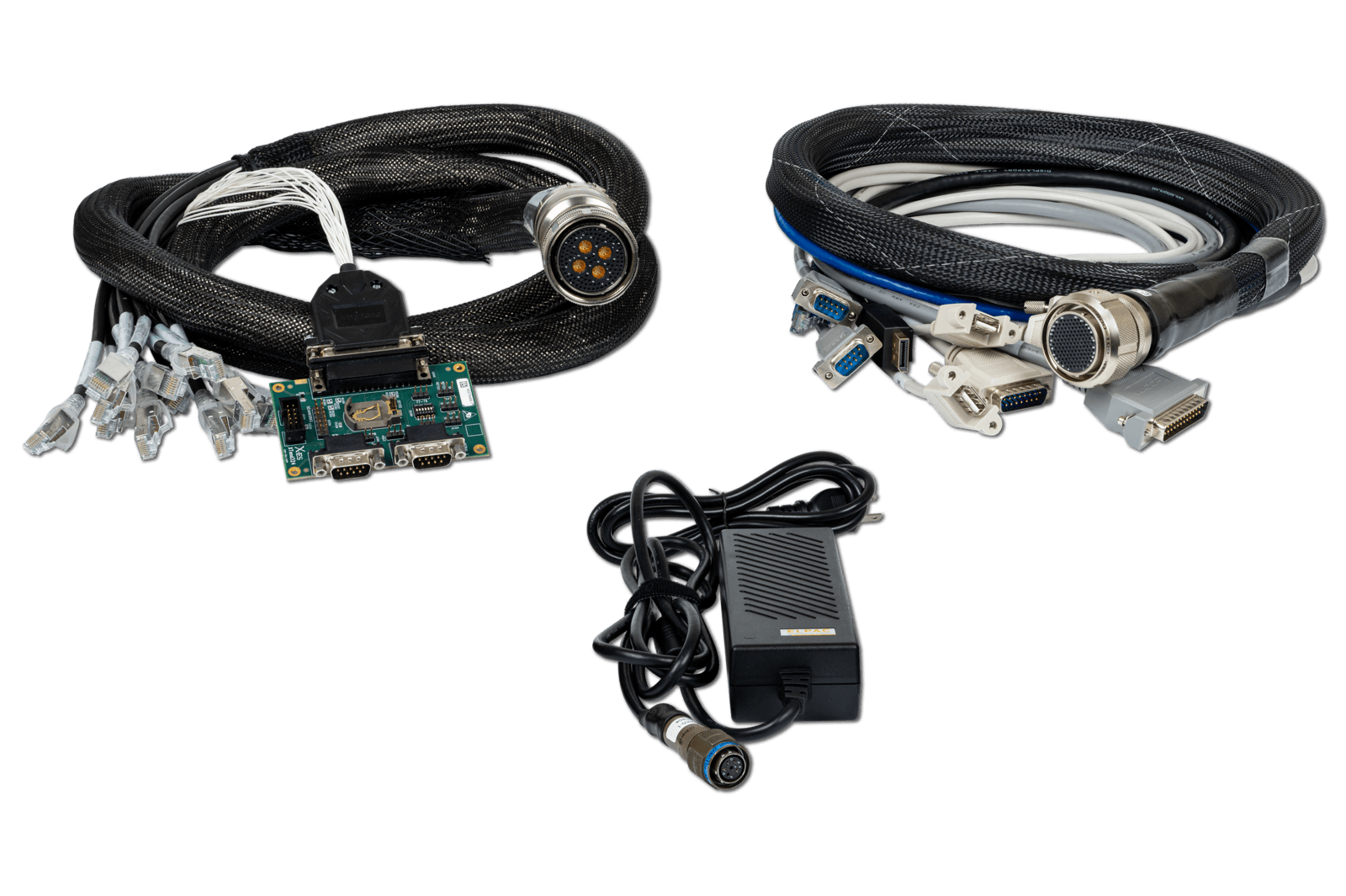

This development kit consists of the XPm9004 120 VAC to 24 V DC power supply, the XTend5114 breakout cable to the J2 interface, the XTend5124 breakout cable to the J3 interface, and the XTend324 P14 breakout board.
J1 Interface
- XPm9004 (9007200-1) 24 V power supply, AC to DC, six-pin D38999 connector with A/C cord
J2 Interface
- XTend5114 (90073655-3) breakout cable for XPedite8270
- Two RS-232 serial ports via DB-9 male connectors
- Two USB 2.0 ports via Type A female connectors
- One Ethernet port via CAT6a cable terminated with RJ-45 connector
- One DisplayPort male connector
- One D-sub 15-pin male connector for GPIO
- One D-sub 15-pin male and one D-sub 25-pin male connectors for XMC I/O
J3 Interface
- XTend5124 (90075250-4) El-Ochito B-key octopus-style breakout cable
- 12 Ethernet ports via CAT6a cables terminated with RJ-45 connectors
P14 Interface
- XTend324 (90075455-2) breakout board for XTend5124
- Two RS-232 serial ports via DB-9 male connectors
- GPIO/Reset DIP switches
- VBAT holder for 20.0 mm battery input
Recommended Operating Environment
The components of this kit are intended for development purposes. Using the kit outside of the operating ranges listed below is not recommended and may result in damage to the cables, power supply, and/or system itself.
- Cables: -10°C to 75°C
- Power Supply: 0°C to 40°C (180W) / 60°C (90W)
Accessories
- XPm9004-1 (9007200-1) – 24 V Power Supply, AC to DC, Six-Pin D38999 Connector with A/C Cord
- XTend5114-3 (90073655-3) – Breakout Cable for XPedite8270
- XTend5124-4 (90075250-4) – El-Ochito B-key Octopus-Style Breakout Cable
- XTend324-2 (90075455-2) – Breakout Board for XTend5124
XPand6241 Dev. Kit
Rapid-Prototyping Development Kit for the XPand6241 Rugged System
