XPand6242 Development Kit
The XPand6242 Development Kit is provided to simplify and speed up development with the XPand6242 rugged system.
The kit breaks out the XPand6242’s I/O to development-friendly commercial connectors and includes power supplies for powering the unit from standard 120 VAC wall outlets.
The XPand6242 Development Kit is available as an accessory to select X-ES products and is not sold separately.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XPand6242 Development Kit
The XPand6242 Development Kit is provided to simplify and speed up development with the XPand6242 rugged system.
I/O & Connectivity
The kit breaks out the XPand6242’s I/O to development-friendly commercial connectors and includes power supplies for powering the unit from standard 120 VAC wall outlets.
Included Modules

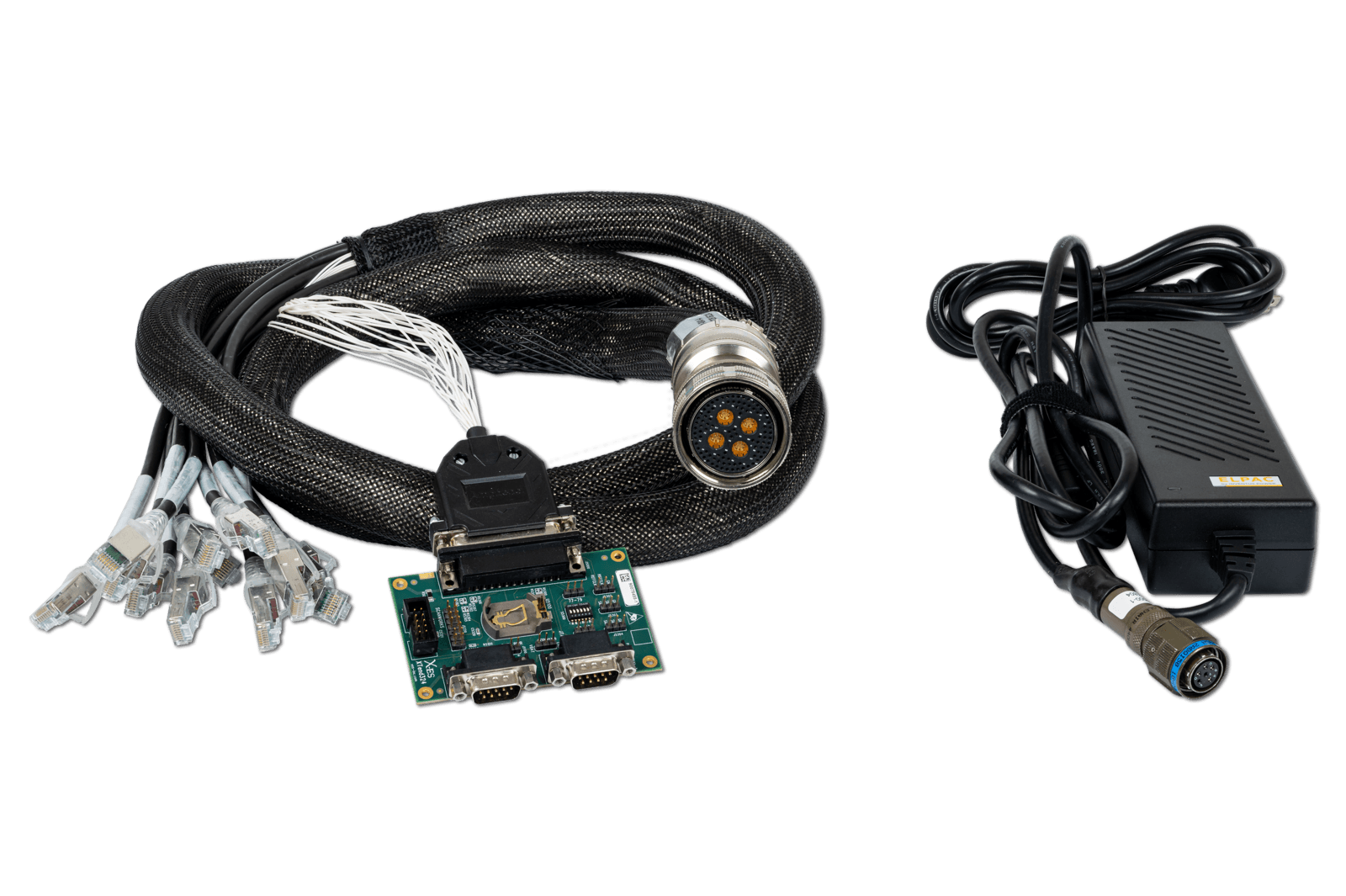

This development kit consists of the XPm9004 120 VAC to 24 V DC power supply, the XTend5124 breakout cable (A-key) to the J2 interface, another XTend5124 breakout cable (B-key) to the J3 interface, and two XTend324 P14 breakout boards.
J1 Interface
- XPm9004 (9007200-1) 24 V power supply, AC to DC, six-pin D38999 connector with A/C cord
J2 Interface
- XTend5124 (90075250-3) El-Ochito A-key octopus-style breakout cable
- 12 Ethernet ports via CAT6a cables terminated with RJ-45 connectors
J3 Interface
- XTend5124 (90075250-4) El-Ochito B-key octopus-style breakout cable
- 12 Ethernet ports via CAT6a cables terminated with RJ-45 connectors
P14 Interface
- Two XTend324 (90075455-1 and 90075455-2) breakout boards for XTend5124
- Four RS-232 serial ports (two per breakout board) via DB-9 male connectors
- GPIO/Reset DIP switches
- VBAT holder for 20.0 mm battery input (supported only on J3)
Recommended Operating Environment
The components of this kit are intended for development purposes. Using the kit outside of the operating ranges listed below is not recommended and may result in damage to the cables, power supply, and/or system itself.
- Cables: -10°C to 75°C
- Power Supply: 0°C to 40°C (180W) / 60°C (90W)
Accessories
- XPm9004-1 (9007200-1) – 24 V Power Supply, AC to DC, Six-Pin D38999 Connector with A/C Cord
- XTend5124-3 (90075250-3) – El-Ochito A-key Octopus-Style Breakout Cable
- XTend5124-4 (90075250-4) – El-Ochito B-key Octopus-Style Breakout Cable
- XTend324-1 (90075455-1) – Breakout Board for XTend5124
- XTend324-2 (90075455-2) – Breakout Board for XTend5124
XPand6242 Dev. Kit
Rapid-Prototyping Development Kit for the XPand6242 Rugged System
