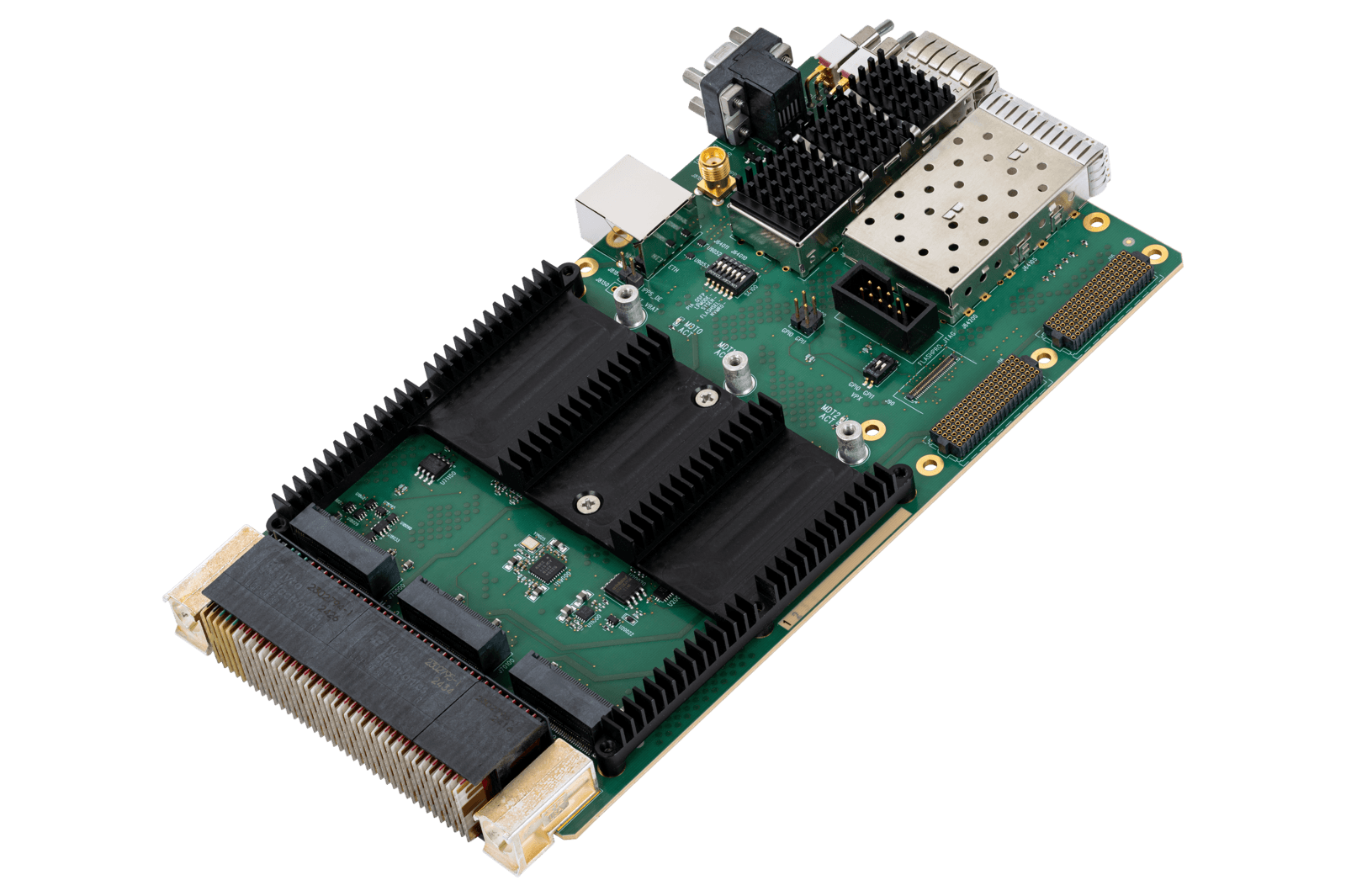

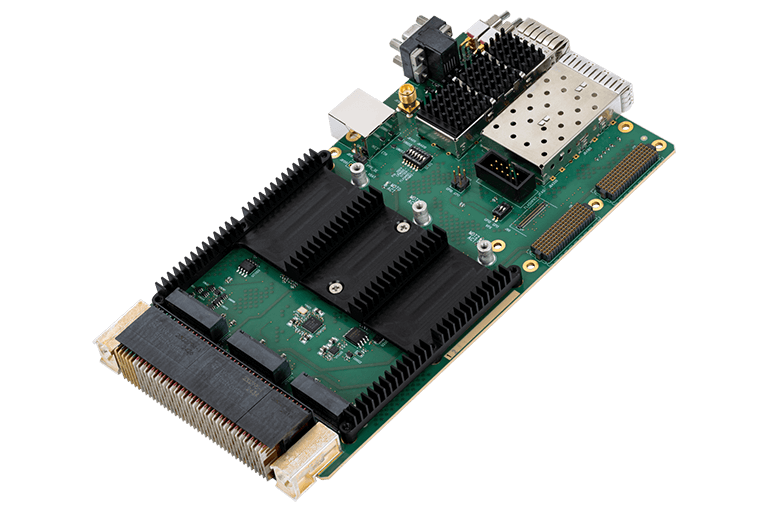

3U VPX REAR TRANSITION MODULE · SKU 90040150
XIt1102
The XIt1102 provides I/O expansion for Intel® Xeon® D-1700 series (formerly Ice Lake-D) processor-based 3U VPX single board computers (SBCs).
Its elongated design fits in VITA 46.10 RTM slots and allows for convenient access to more I/O connectors than standard VITA 46.10 RTMs.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XIt1102
The XIt1102 provides I/O expansion for Intel® Xeon® D-1700 series (formerly Ice Lake-D) processor-based 3U VPX single board computers (SBCs).
Elongated Design
Its elongated design fits in VITA 46.10 RTM slots and allows for convenient access to more I/O connectors than standard VITA 46.10 RTMs.
Ethernet Connectivity
The XIt1102 features two SFP+ connectors for two 10GBASE-R Ethernet ports, plus a zQSFP+ connector that can be configured for either one 100GBASE-R Ethernet port or four 25GBASE-R Ethernet ports. An RJ-45 connector supports one 10/100/1000BASE-T Ethernet port.
Serial Ports
The XIt1102 also supports two RS-232/422/485 serial ports.
XIM Site Access
One XIM site allows for access to the X12d signals from P1 and the X16s+X8d signals from P2. An optional XIM tray can be installed to support XIM modules (contact factory for details).
M.2 Expansion
Multiple M.2 sites can support up to two x4 PCI Express interfaces and one x2 PCI Express interface.
Back Panel I/O
- Two SFP+ connectors for two 10GBASE-R Ethernet ports
- One zQSFP+ connector for one 100GBASE-R Ethernet port or four 25GBASE-R Ethernet ports
- Two micro-DB-9 connectors for two RS-232/422/485 serial ports
- One RJ-45 connector for one 10/100/1000BASE-T Ethernet port
- One XIM site to support X12d+X16s+X8d breakout
Internal I/O
- Two M.2 sites to support two x4 PCI Express interfaces
- One M.2 site to support one x2 PCI Express interface
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements.
- Conformal coating available as an ordering option
Physical Characteristics
- 3U VPX RTM form factor
- Fits in VITA 46.10 RTM slots
- Overall dimensions: 202.3 mm x 149.7 mm (with XIM tray) or 108.1 mm (without XIM tray)
- 1.0 in. pitch
Accessories
- Cable (30075004) – Serial, Micro D to DB-9, F to M, 3 ft.
XIt1102
3U VPX Rear Transition Module with 100 Gigabit and 10 Gigabit Ethernet, Serial, and XIM Site
