The XPedite7172 is a high-performance, low-power 3U VPX-REDI single board computer based on the Intel® Core™2 Duo processor. With two x4 PCI Express P1 interconnects and two Gigabit Ethernet ports, the XPedite7172 is ideal for high-bandwidth data-processing applications.
The XPedite7172 accommodates up to 4 GB of DDR2-400 ECC SDRAM to support memory-intensive applications, and hosts numerous I/O ports including Gigabit Ethernet, USB 2.0, SATA, and RS-232/422/485 through the P2 backplane connector.
The XPedite7172 can be used in either the system slot or peripheral slot of a VPX backplane. Linux, Wind River VxWorks, QNX Neutrino, and Green Hills INTEGRITY Board Support Packages (BSPs), as well as Microsoft Windows drivers, are available.

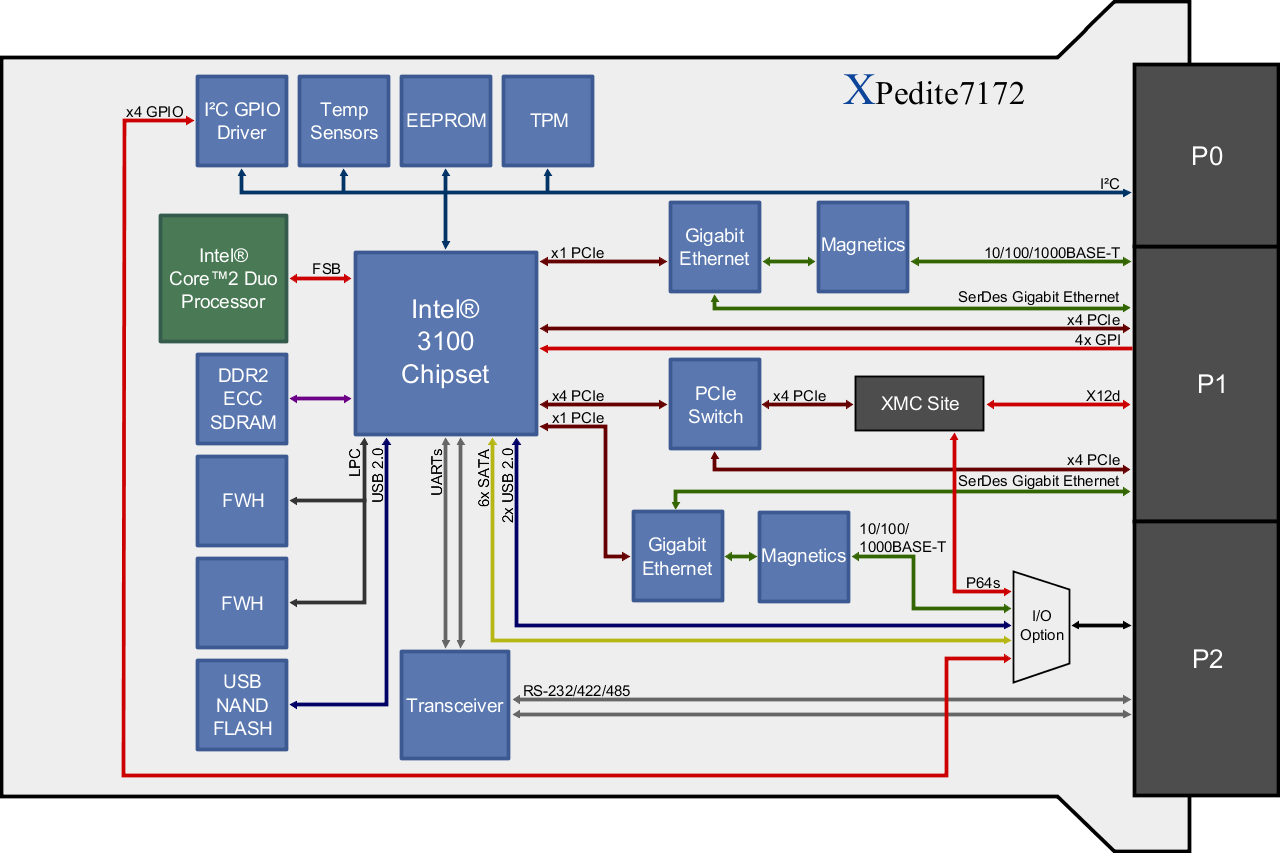

Technical Specs
Processor
- Intel® Core™2 Duo at up to 1.8 GHz
- Up to 200 MHz (800 MT/s) FSB
- Up to 6 MB of L2 cache
Memory
- Up to 4 GB of DDR2-400 ECC SDRAM
- Up to 2 MB firmware hub flash (or 1 MB with redundancy)
- 4 GB of NAND flash
VPX (VITA 46) P1 I/O
- x4 PCI Express interface to P1.A
- x4 PCI Express interface to P1.B
- Two SerDes Gigabit Ethernet ports (or one 10/100/1000BASE-T port out P1 and one out P2)
- X12d XMC P16 I/O
VPX (VITA 46) P2 I/O
- One 10/100/1000 Mbps Gigabit Ethernet port (optional)
- Six SATA 1.5 Gb/s ports (optional)
- Two USB 2.0 ports (optional)
- Two RS-232/422/485 serial ports
- I²C port
- 3.3 V GPIO signals
- P64s P14 I/O
XMC Site
- x4 PCIe port
- P64s P14 I/O support
- X12d P16 I/O support
Front Panel I/O
- Front panel RJ-45 Ethernet, USB, and micro-DB-9 RS-232 serial ports available via optional plugover module
Software
- Linux BSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
- Microsoft Windows drivers
Physical Characteristics
- 3U VPX-REDI conduction- or air-cooled form factor
- Dimensions: 100 mm x 160 mm
- 0.8 in. pitch without solder-side cover
- 0.85 and 1.0 in. pitch with solder-side cover
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements.
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
- Conformal coating available as an ordering option
Power Requirements
- Maximum power consumption: 37 W (with 1.8 GHz processor), 28 W (with 1.2 GHz processor)
