Rugged Intel® Core™ i7 6U VPX SBC for the harshest military applications.

XCalibur4440 Intel Core i7 6U VPX Single Board Computer SBC

XCalibur4440

Intel® Core™ i7 Processor-Based Conduction- or Air-Cooled 6U VPX Module

The XCalibur4440 is a high-performance, 6U VPX, multiprocessing, single board computer that is ideal for ruggedized systems requiring high bandwidth processing and low power consumption. With the ability to use 2nd or 3rd generation Intel® Core™ i7 processors, the XCalibur4440 delivers enhanced performance and efficiency for today's network information processing and embedded computing applications.

The XCalibur4440 provides 16 GB of DDR3-1600 ECC SDRAM in two channels, two PrPMC/XMC slots, 32 MB of NOR flash, and up to 256 GB of SATA NAND flash. The XCalibur4440 also supports five Gigabit Ethernet ports, two graphics ports, audio, I²C, PMC I/O, XMC I/O, and RS-232/422/485 serial ports out the front panel and/or backplane.

The XCalibur4440 is a powerful, feature-rich solution for the next generation of compute-intensive embedded applications. Wind River VxWorks and Linux Board Support Packages (BSPs) are available, as well as Microsoft Windows drivers.

  • Supports 2nd and 3rd generation Intel® Core™ i7 processors
  • Quad- or dual-core processor with Intel® Hyper-Threading Technology
  • 6U VPX module
  • Compatible with multiple VITA 65 OpenVPX™ slot profiles
  • Conduction or air cooling
  • Up to 16 GB of DDR3-1600 ECC SDRAM in two channels
  • 32 MB of NOR boot flash
  • Up to 256 GB of SATA NAND flash
  • Five Gigabit Ethernet ports (one front panel and four backplane)
  • x4 Gen2 PCI Express lanes from switch to XMC sites
  • Four x4 (or two x8) Gen2 PCI Express lanes from switch to backplane
  • Two graphics ports (Dual-Mode DisplayPort on front panel, DVI-D/HDMI on backplane)
  • Four SATA 3.0 Gb/s ports on backplane
  • Five USB 2.0 ports (one to front panel and four to backplane)
  • Two RS-232/422/485 serial ports
  • Wind River VxWorks BSP
  • Linux BSP
  • Microsoft Windows drivers
  • Contact factory for availability of Green Hills INTEGRITY, QNX Neutrino, and LynuxWorks LynxOS BSPs

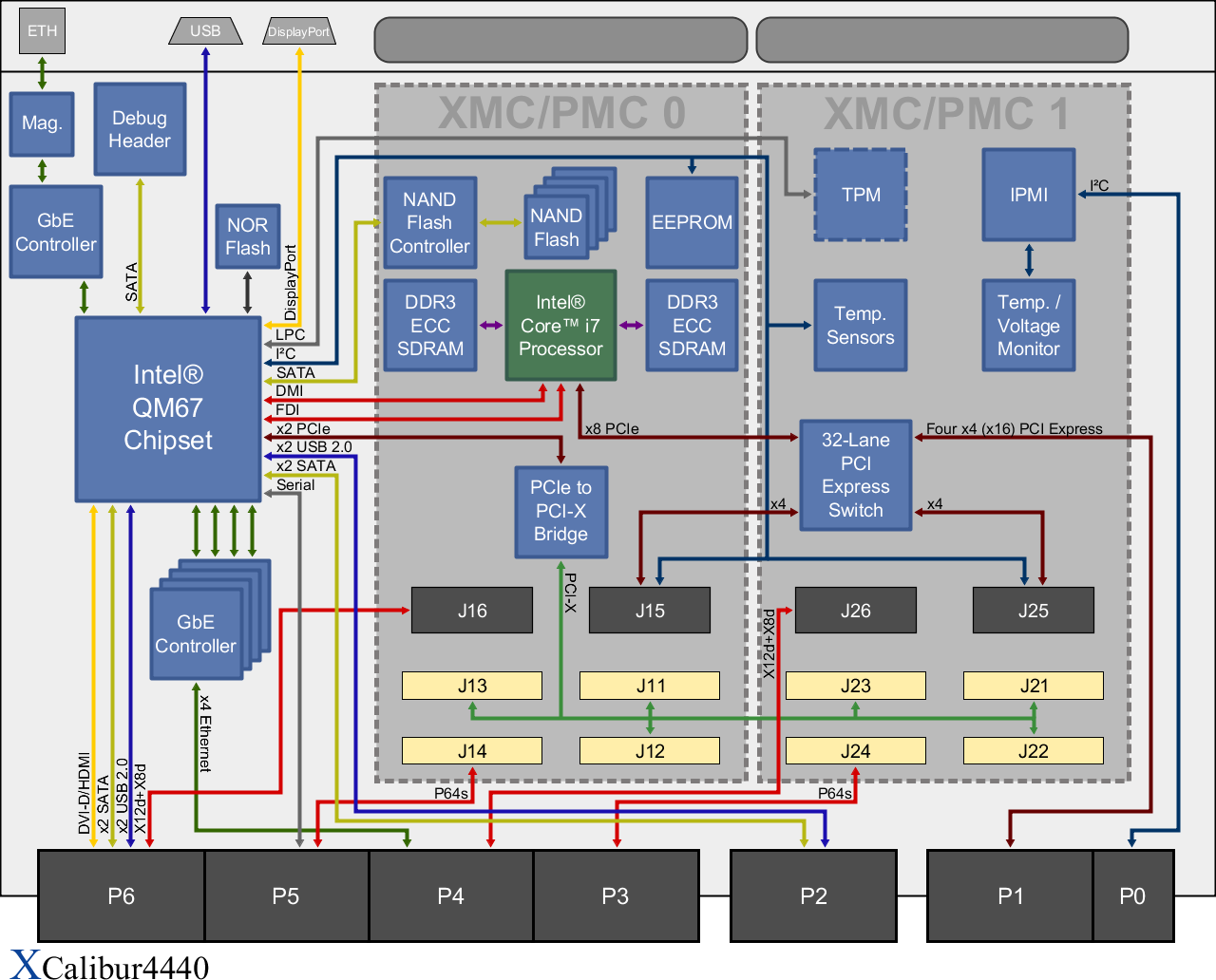

XCalibur4440 Block Diagram

Click on the image above to view a larger version.

Processor

  • Quad- or dual-core Intel® Core™ i7
  • Intel® Turbo Boost Technology
  • Intel® Hyper-Threading Technology
  • AVX instruction set extensions
  • Integrated with Intel® QM67 chipset
  • Dual-channel integrated memory controller
  • Integrated high-performance 3D graphics controller

Dual-Core Processor Configurations

  • Core™ i7-2655LE: 2.2 GHz, 4 MB cache
  • Core™ i7-2610UE: 1.5 GHz, 4 MB cache
  • Core™ i7-3555LE: 2.5 GHz, 4 MB cache
  • Core™ i7-3517UE: 1.7 GHz, 4 MB cache

Quad-Core Processor Configurations

  • Core™ i7-3612QE: 2.1 GHz, 6 MB cache
  • Core™ i7-3615QE: 2.3 GHz, 6 MB cache

Memory

  • Up to 16 GB of DDR3-1600 ECC SDRAM in two channels
  • 32 MB of NOR flash
  • Up to 256 GB of SATA NAND flash
  • 16 kB I²C EEPROM

Graphics

  • Integrated high-performance 3D graphics controller
  • Dual-Mode DisplayPort interface to front panel
  • DVI-D/HDMI to back panel

VPX

  • OpenVPX™ (VITA 65)
  • Four x4 Gen2 PCIe lanes to P1
  • Two 1000BASE-BX Ethernet ports to P4
  • Two 10/100/1000BASE-T Ethernet ports to P4
  • PMC and XMC I/O to P3, P4, P5, P6, mapping P3w1P4-P64s+X12d+X8d

PrPMC

  • PCI-X (64/32-bit, 100/66 MHz)
  • PCI (64/32-bit, 66/33 MHz)

XMC

  • x4 Gen2 PCIe port to J15 and J25

Front Panel I/O (R1 Level Only)

  • Dual-Mode DisplayPort video interface
  • One 10/100/1000BASE-T Ethernet port
  • One USB 2.0 port
  • Status LEDs

Back Panel

  • Two RS-232/422/485 serial ports
  • Two 10/100/1000BASE-T Ethernet ports
  • Two 1000BASE-BX Ethernet ports
  • Four SATA 3.0 Gb/s ports
  • PMC I/O
  • Four USB 2.0 ports
  • Intel® High Definition Audio port (optional)

Security and Management

  • Baseboard Management Controller (IPMI)
  • Optional Trusted Platform Module (TPM)
  • Non-volatile memory write protection

Software Support

  • Wind River VxWorks BSP
  • Linux BSP
  • Microsoft Windows drivers
  • Contact factory for availability of Green Hills INTEGRITY, QNX Neutrino, and LynuxWorks LynxOS BSPs

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option

Power Requirements

  • Power will vary based on configuration and usage. Please consult factory.

Accessories

  • XTend204 (90070330) - Debug Module with JTAG/Serial/LPC Cable
