XPedite7370

The XPedite7370 is a high-performance, low-power 3U VPX-REDI single board computer based on the Intel Core i7 processor and Intel QM57 chipset. With two PCI Express P1 interconnects and two Gigabit Ethernet ports, the XPedite7370 is ideal for the high-bandwidth and processing intensive applications of today's military and avionics applications.

The XPedite7370 accommodates up to 8 GB of DDR3 ECC SDRAM on two channels to support memory-intensive applications. The XPedite7370 also hosts numerous I/O ports including Gigabit Ethernet, USB 2.0, SATA, graphics, and RS-232/RS-422/RS-485 through the backplane connectors.

The XPedite7370 can be used in either the system slot or peripheral slot of a VPX backplane. Wind River VxWorks, QNX Neutrino, Green Hills INTEGRITY, and Linux Board Support Packages (BSPs), as well as Windows drivers, are available.

• Intel Core i7-610E, -620LE, -660UE, and -620UE processors
• Dual-core with hyper-threading technology
• 3U VPX (VITA 46) module
• OpenVPX standards based
• Ruggedized Enhanced Design Implementation (REDI) per VITA 48
• Conduction or air cooling
• Up to 8 GB of DDR3-1066 ECC SDRAM in two channels
• 32 MB NOR boot flash
• Up to 16 GB of NAND flash
• PrPMC/XMC interface with rear and front panel I/O support
• Two PCI Express P1 fabric interconnects
• Two optional 10/100/1000BASE-T or 1000BASE-BX Ethernet ports
• Two optional rear panel USB 2.0 high-speed ports
• Two optional rear panel SATA 3 Gb/s ports
• Two rear panel RS-232/RS-422/RS-485 serial ports
• Two rear panel DVI graphics ports
• Front I/O available via plugover module
• Linux BSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Green Hills INTEGRITY BSP
• Microsoft Windows drivers

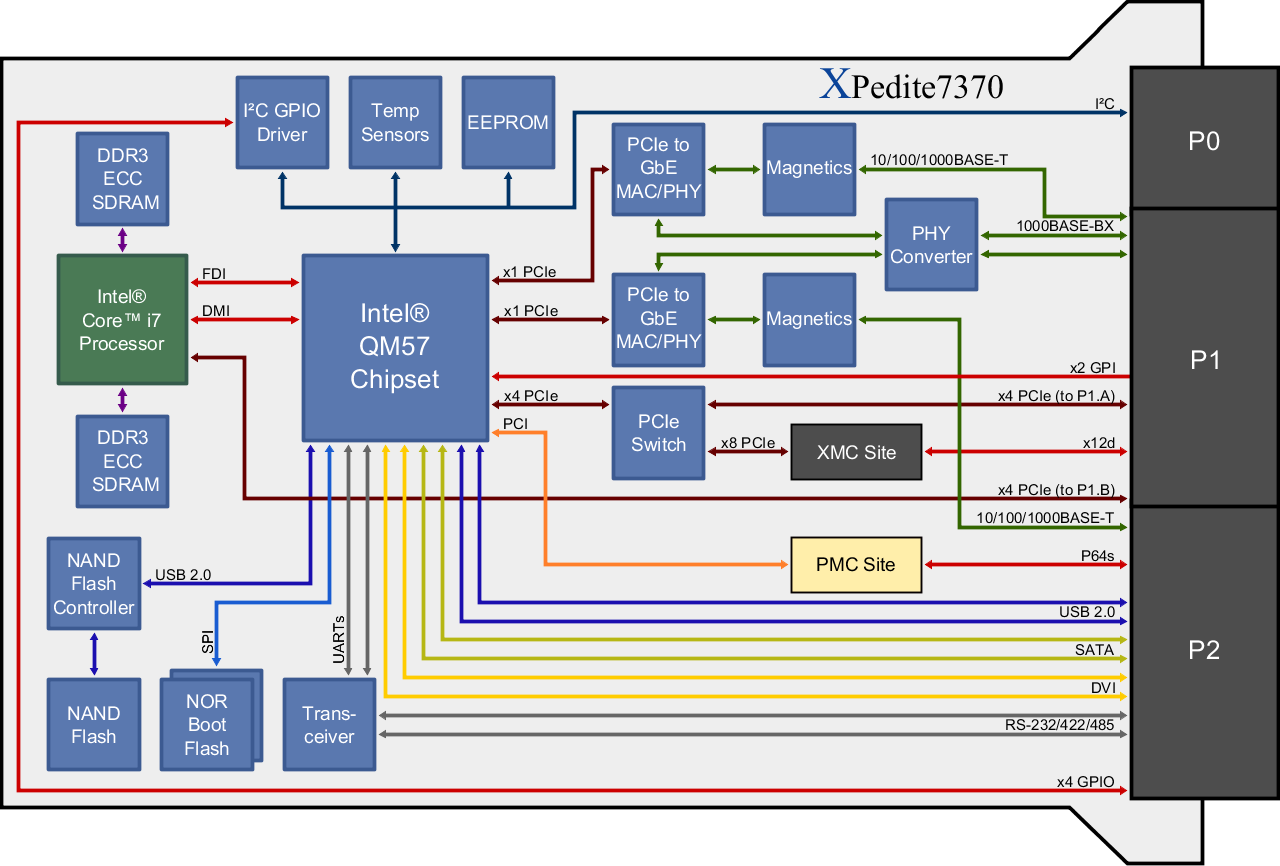

Click on the image above to view a larger version.

Processor

• Intel Core i7 processor operating at 2.53, 2.0, 1.33, or 1.06 GHz
• Dual-core with hyper-threading technology
• Intel QM57 chipset
• Dual channel integrated memory controller
• Integrated graphics controller
• 4 MB of shared cache

Memory

• Up to 8 GB of DDR3-1066 ECC SDRAM on two channels
• 32 MB NOR boot flash
• Up to 16 GB of NAND flash

Graphics

• Integrated high performance 3D graphics controller
• Dual DVI-D

VPX (VITA 46) P0 I/O

• I²C port

VPX (VITA 46) P1 I/O

• x4 PCI Express interface to P1.A
• x4 PCI Express interface to P1.B
• Two 1000BASE-BX Gigabit Ethernet ports (or one 10/100/1000BASE-T port to P1 and one port to P2)
• X12d XMC P16 I/O

VPX (VITA 46) P2 I/O

• One 10/100/1000-Mbps Gigabit Ethernet port (optional)
• Two SATA ports (optional)
• Two USB 2.0 ports (optional)
• Up to two RS-232/RS-422/RS-485 serial ports
• 3.3V GPIO signals (optional)
• Two DVI graphics ports (optional)
• One audio port

PrPMC/XMC Site

• 32-bit, 33-MHz PCI bus (PMC interface)
• x8 PCIe port (XMC interface)
• X12d P16 I/O support

Front Panel I/O

• Front panel RJ-45 Ethernet, USB, and micro-DB9 RS-232 serial ports available via optional plugover module

Software Support

• Linux BSP
• Wind River VxWorks BSP
• QNX Neutrino BSP
• Green Hills INTEGRITY BSP
• Windows drivers

Physical Characteristics

• 3U VPX-REDI conduction- or air-cooled form factor
• Dimensions: 100 mm x 160 mm
• 0.8 in. pitch without solder side cover
• 0.85 and 1.0 in. pitch with solder side cover

Environmental Requirements

• Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
• Conformal coating available as an ordering option

Power Requirements

Accessories

• XTend204 (90070050) - Debug Module with JTAG/Serial/LPC Cable
