XMC MEZZANINE MODULE · SKU 90015360

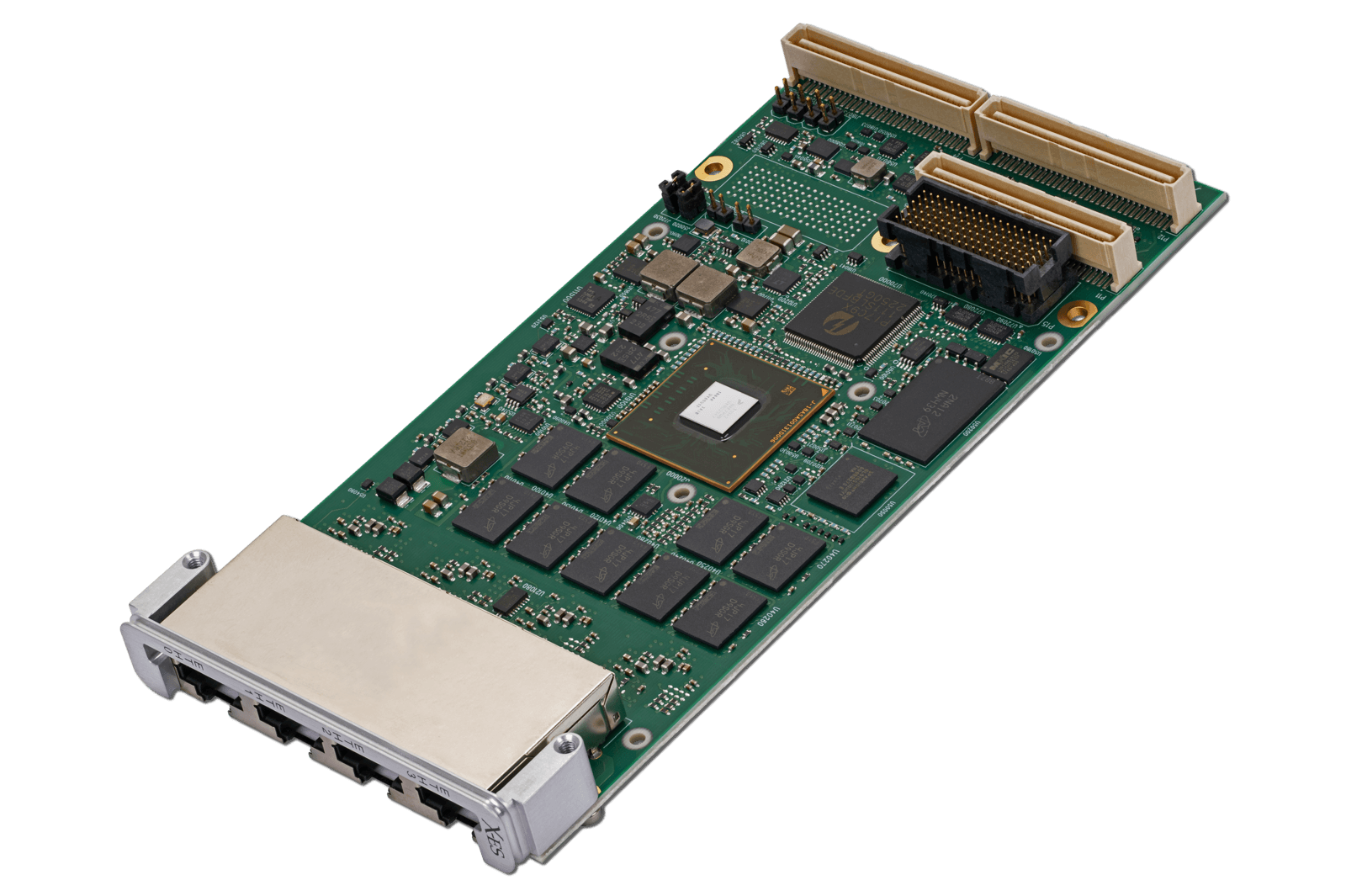

XPedite6109
The XPedite6109 is a high-performance, XMC/PrPMC, single board computer supporting an NXP QorIQ T1042 processor and accommodating up to 8 GB of DDR3 ECC SDRAM.
The T1042 processor available in the XPedite6109’s default configuration offers four e5500 cores running at up to 1.4 GHz with a single channel of DDR3 memory, all within a low power envelope. Alternate processors T1022 and T2081 are available.
Product Lifecycle
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
X-ES also offers comprehensive configuration management solutions that extend product support and availability beyond final sale, keeping systems running long after standard end-of-life milestones.
Introduction to XPedite6109
The XPedite6109 is a high-performance, XMC/PrPMC, single board computer supporting an NXP QorIQ T1042 processor and accommodating up to 8 GB of DDR3 ECC SDRAM.
NXP Processing
The T1042 processor available in the XPedite6109’s default configuration offers four e5500 cores running at up to 1.4 GHz with a single channel of DDR3 memory, all within a low power envelope.
When configured to use the T2081 processor, the XPedite6109 maximizes performance with eight virtual (four dual-threaded) e6500 cores running at up to 1.8 GHz.
AltiVec SIMD & Low-Power Options
Each e6500 core implements the NXP AltiVec technology-based SIMD engine, providing DSP-level Floating-Point performance and an extensive inventory of software libraries.
The T1022 provides the lowest power configuration with two e5500 cores running at up to 1.4 GHz.
I/O & Connectivity
The XPedite6109 provides four 10/100/1000BASE-T Ethernet ports to the front panel in addition to USB 2.0, PCI Express, and RS-232/422/485 serial to P14/P15.
Software Support
Linux and Wind River VxWorks Board Support Packages (BSPs) are available.
Processor
- NXP QorIQ T1042 processor with four Power Architecture® e5500 cores at up to 1.4 GHz
- 256 kB back-side L2 cache (per core)
- 256 kB platform cache
- IEEE 754 Floating-Point Unit support
Alternate Processor Configurations
- T1022 (two e5500 cores) at up to 1.4 GHz
- T2081 (four dual-threaded e6500 cores) at up to 1.8 GHz
Memory
- Up to 8 GB of DDR3 ECC SDRAM
- Up to 512 MB of NOR flash (with redundancy)
- Up to 32 GB of NAND flash
PrPMC Interface
- 66/33 MHz PCI
- 32-bit bus interface
P15 XMC Interface
- x4 PCI Express Gen2 (T10xx) or Gen3 (T2081)
P14 Interfaces
- Two RS-232/422/485 serial ports
- Two USB 2.0 ports
- One I²C interface
Front Panel I/O
- Four 10/100/1000BASE-T Ethernet ports
Software Support
- Linux BSP
- Wind River VxWorks BSP
Physical Characteristics
- Air-cooled XMC/PMC form factor
- Dimensions: 149 mm x 74 mm, 10 mm stacking height
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements.
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
- Conformal coating available as an ordering option
Power Requirements
- Power will vary based on configuration and usage. Please consult factory.
Accessories
- XIt2501 (90040005) – PMC I/O Module (PIM) with Gigabit Ethernet, SATA, USB, Serial, and Mini DisplayPort
- XTend200 (90070050) – Debug Module with JTAG/Serial/Ethernet Cable
- XTend3103 (90073990) – Dual XMC/PrPMC Carrier for Development and Testing
XPedite6109
NXP QorIQ T1042, T1022, or T2081 Quad-Core Processor-Based, Air-Cooled XMC/PrPMC with Four Front-Panel Gigabit Ethernet Ports
