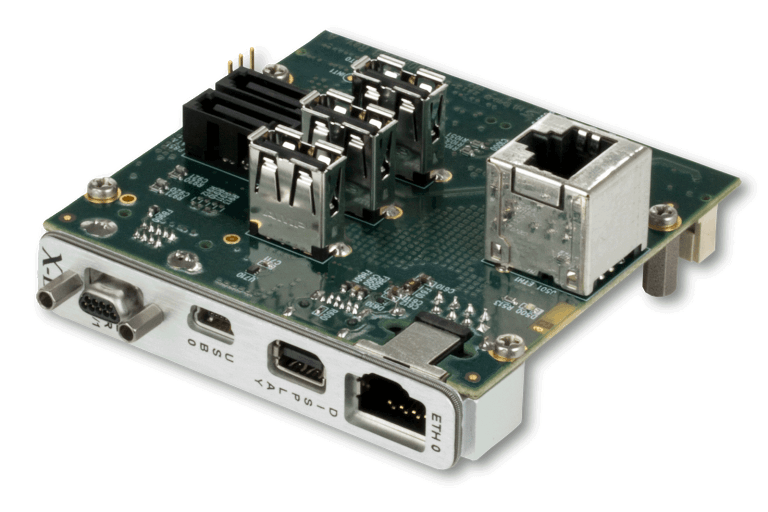

XIt2501

PMC I/O Module (PIM) with Gigabit Ethernet, SATA, USB, Serial, and Mini DisplayPort

When installed on the appropriate carrier, such as the XTend3100 or XIt1003, the XIt2501 routes I/O signals from an associated XMC/PrPMC's rear panel P14 and P16 connectors to allow connection of these signals to external equipment.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90040005 Categories: ,
XIt2501 PIM RTM

The XIt2501 is a PMC I/O Module (PIM), per the VITA 36 specification, which supports various X-ES XMC/PrPMC products. When installed on the appropriate carrier, such as the XTend3100 or XIt1003, the XIt2501 routes I/O signals from an associated XMC/PrPMC’s rear panel P14 and P16 connectors to allow connection of these signals to external equipment.

The XIt2501 breaks out 10/100/1000BASE-T Ethernet, RS-232 serial, SATA, USB, and video signals to the appropriate connectors located on the front panel and rear surface of the card.

Features

  • XIM/PIM module
  • Two 10/100/1000BASE-T Ethernet ports to RJ-45 connectors
  • Two RS-232 serial ports to micro-DB-9 connectors
  • Four USB 2.0 ports
  • Two SATA ports
  • Mini DisplayPort interface

Technical Specs

Ethernet

  • Two 10/100/1000BASE-T Ethernet ports to RJ-45 connectors

Serial

  • Two RS-232 serial ports to micro-DB-9 connectors
  • RS-422/485 conversion (optional)

SATA

  • Two SATA ports to internal vertical SATA connectors

USB

  • One USB 2.0 port to front panel Type Mini-AB connector
  • Three USB 2.0 ports to internal vertical Type A connectors

Video

  • One Dual-Mode DisplayPort interface to Mini DisplayPort connector

Physical Characteristics

  • PMC I/O Module (VITA 36)
  • Dimensions: 74 mm x 69 mm

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
  • Conformal coating available as an ordering option

Accessories

  • XTend300 (90070180) - 1x Female DB-9 to 2x Male DB-9 Serial Port Converter
  • Cable (90000075) - Serial, Micro D to DB-9, F to M, 3 ft.
  • Cable (90000260) - Mini DisplayPort to DisplayPort, M to M, 6 ft.
  • Cable (90000265) - Mini DisplayPort to HDMI, M to M, 6 ft.
  • Cable (90000270) - Mini DisplayPort to DVI-D, M to M, 6 ft.

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Datasheet

View the XIt2501
Datasheet PDF

Download Datasheet
