XIt1098

3U VPX Rear Transition Module with Dual 40 Gigabit and 10 Gigabit Ethernet, USB, and Serial

The XIt1098 provides I/O expansion for Intel® Xeon® D-2700 series (formerly Ice Lake-D) processor-based 3U VPX single board computers (SBCs). Its elongated design fits in VITA 46.10 RTM slots and allows for convenient access to more I/O connectors than standard VITA 46.10 RTMs.

The XIt1098 features two SFP+ connectors for two 10GBASE-R Ethernet ports, plus two QSFP+ connectors that can each be configured for either two 40GBASE-R Ethernet ports or eight 10GBASE-R Ethernet ports.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90030650 Categories: ,

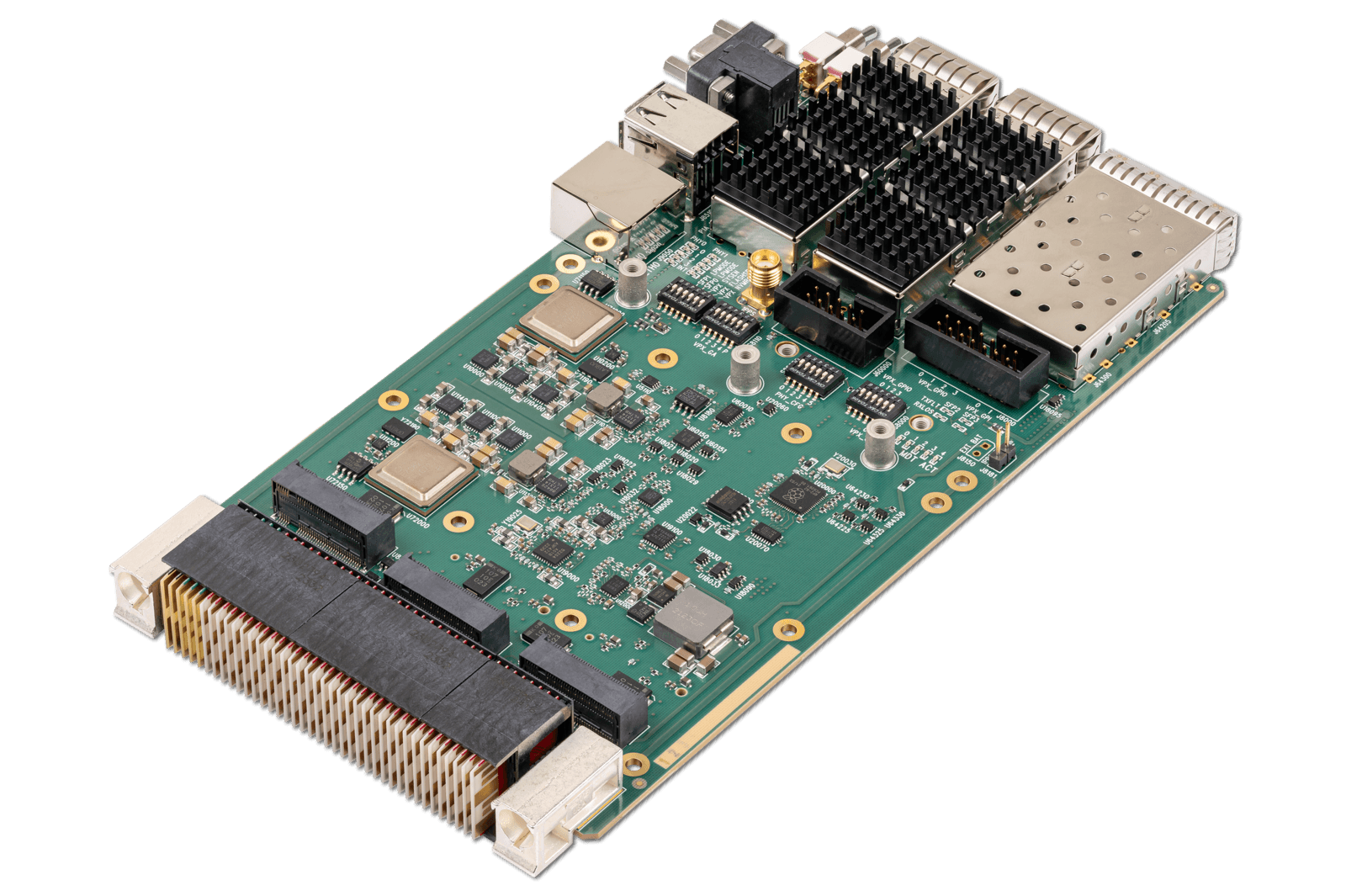

XIt1098 3U VPX Rear Transition Module

The XIt1098 provides I/O expansion for Intel® Xeon® D-2700 series (formerly Ice Lake-D) processor-based 3U VPX single board computers (SBCs). Its elongated design fits in VITA 46.10 RTM slots and allows for convenient access to more I/O connectors than standard VITA 46.10 RTMs.

The XIt1098 features two SFP+ connectors for two 10GBASE-R Ethernet ports, plus two QSFP+ connectors that can each be configured for either two 40GBASE-R Ethernet ports or eight 10GBASE-R Ethernet ports. An RJ-45 connector supports one 10/100/1000BASE-T Ethernet port. The XIt1098 also supports two RS-232/422/485 serial ports and two USB 2.0 ports.

Multiple M.2 sites can support up to three x4 PCI Express interfaces and two x2 PCI Express interfaces.

Features

  • 3U VPX Rear Transition Module
  • Two SFP+ connectors for two 10GBASE-R Ethernet ports
  • Two QSFP+ connectors for two 40GBASE-R Ethernet ports or eight 10GBASE-R Ethernet ports
  • Two USB 2.0 ports
  • Two micro-DB-9 connectors for two RS-232/422/485 serial ports
  • One RJ-45 connector for one 10/100/1000BASE-T Ethernet port
  • Three M.2 sites to support three x4 PCI Express interfaces
  • Two M.2 sites to support two x2 PCI Express interfaces
  • Headers and toggle switches for GPIO, interrupt, and reset inputs
  • Fits in VITA 46.10 RTM slots
  • 1.0 in. pitch

Technical Specs

Back Panel I/O

  • Two SFP+ connectors for two 10GBASE-R Ethernet ports
  • Two QSFP+ connectors for two 40GBASE-R Ethernet ports or eight 10GBASE-R Ethernet ports
  • Two USB 2.0 ports
  • Two micro-DB-9 connectors for two RS-232/422/485 serial ports
  • One RJ-45 connector for one 10/100/1000BASE-T Ethernet port

Internal I/O

  • Three M.2 sites to support three x4 PCI Express interfaces
  • Two M.2 sites to support two x2 PCI Express interfaces
  • GPIO header

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1
  • Conformal coating available as an ordering option

Physical Characteristics

  • 3U VPX RTM form factor
  • Fits in VITA 46.10 RTM slots
  • Overall dimensions: TBD
  • 1.0 in. pitch

Accessories

  • XChange3030 (90074570) - 3U VPX 40G Ethernet Switch with Layer 2 Switching
  • XIt1097 (90074535) - 3U VPX Rear Transition Module with 40 Gigabit and 10 Gigabit Ethernet, USB, Serial, and XIM Site
  • XPedite7770 (90030480) - Intel® Xeon® D-1700 Processor-Based 3U VPX-REDI Module with 48 GB of DDR4, 40 Gigabit Ethernet, and SecureCOTS™
  • XPedite7870 (90074380) - Intel® Xeon® D-2700 Processor-Based 3U VPX-REDI Module with 64 GB of DDR4, 40 Gigabit Ethernet, and SecureCOTS™
  • XPand1200 (90070530) - 3U VPX Conduction-Cooled Development Platform

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram
