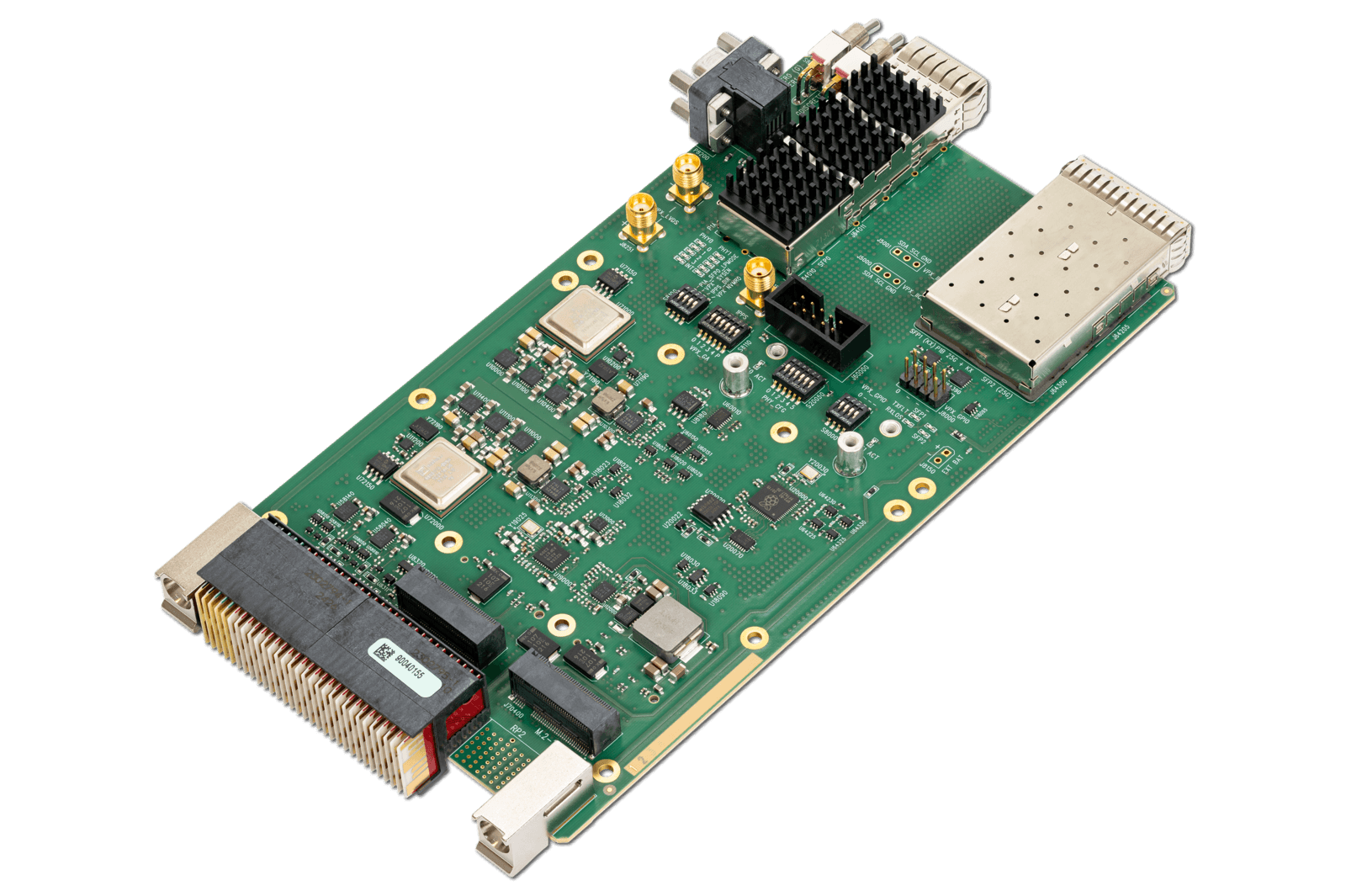

3U VPX REAR TRANSITION MODULE · SKU 90040155
XIt1103
The XIt1103 provides convenient I/O breakout for use with X-ES modules targeting Sensor Open System Architecture (SOSA) Payload plug-in card profiles (PICPs), such as 14.6.11 or 14.6.13.
The XIt1103’s elongated design fits in VITA 46.10 RTM slots and allows for convenient access to more I/O connectors than standard VITA 46.10 RTMs.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XIt1103
The XIt1103 provides convenient I/O breakout for use with X-ES modules targeting Sensor Open System Architecture (SOSA) Payload plug-in card profiles (PICPs), such as 14.6.11 or 14.6.13.
Elongated Design
The XIt1103’s elongated design fits in VITA 46.10 RTM slots and allows for convenient access to more I/O connectors than standard VITA 46.10 RTMs.
Ethernet Connectivity
The XIt1103 features a zQSFP+ connector for one 100GBASE-R4 Ethernet port, plus two SFP+ connectors for up to two 25GBASE-R Ethernet ports.
Serial Ports
Two micro-DB-9 connectors allow for two RS-232 serial ports.
M.2 Expansion
Four M.2 sites (two standard, two optional) support up to four x4 PCI Express interfaces, with PCB routing and connectors for up to Gen4 speeds.
Back Panel I/O
- One zQSFP+ connector for one 100GBASE-R4 Ethernet port
- One SFP+ connector for one 25GBASE-R Ethernet port
- One SFP+ connector for one 25GBASE-R Ethernet port or one 1000BASE-X Ethernet port
- Two micro DB-9 connectors for two RS-232 maintenance serial ports
Internal I/O
- Four M.2 sites (two standard, two optional) to support up to four x4 PCI Express Gen4-capable interfaces
- GPIO header
Physical Characteristics
- 3U VPX RTM form factor
- Fits in VITA 46.10 RTM slots
- VITA 66.4 support (optional, contact factory for details)
- Overall dimensions: 204.7 mm x 150.1 mm (with XIM tray) or 108.5 mm (without XIM tray)
- 1.0 in. pitch
Accessories
- Cable (30075004) – Serial, Micro D to DB-9, F to M, 3 ft.
XIt1103
3U VPX Rear Transition Module with 100/25 Gigabit Ethernet and Serial
