3U VPX SINGLE BOARD COMPUTER · SKU 90075830

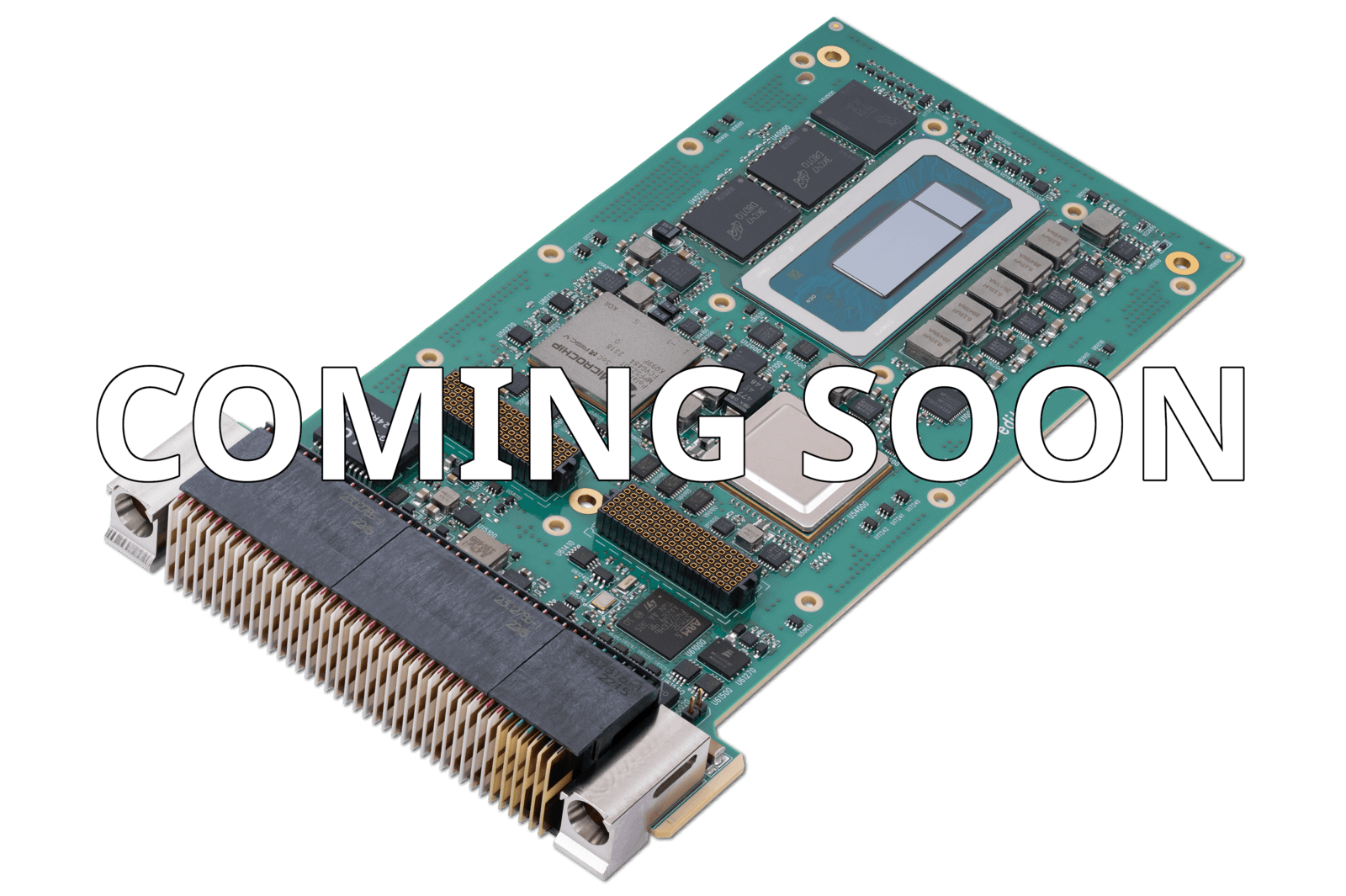

XPedite8271
The XPedite8271 is a secure, high-performance, 3U VPX-REDI single board computer aligned to the Sensor Open System Architecture (SOSA) Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0).
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XPedite8271
The XPedite8271 is a secure, high-performance, single board computer aligned to the Sensor Open System Architecture (SOSA) Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0).
Ruggedized Performance
Based on the 13th Gen Intel® Core™ i7 series (formerly Raptor Lake-P) line of processors, the XPedite8271 is an ideal choice for applications requiring maximum data and information protection along with high performance and power savings.
Security & Data Protection
This 3U VPX-REDI module integrates SecureCOTS™ technology with a Microchip PolarFire™ System-on-Chip (SoC) FPGA for hosting custom functions to protect data from being modified or observed and provides an ideal solution when stringent security capabilities are required.
Memory & Expansion
It supports 64 GB of LPDDR5 SDRAM with in-band ECC in four channels and provides additional expansion capabilities by including an integrated XMC site, which includes a x4 PCI Express connection to the Intel® Core™ i7 processor.
I/O & Connectivity
The XPedite8271 provides fast and efficient I/O with one 100GBASE-KR4, one 25GBASE-KR, and one 1000BASE-KX Ethernet ports.
Software Support
Wind River VxWorks, X-ES Enterprise Linux (XEL), and Linux Yocto Board Support Packages (BSPs) are available.
Processor
- Supports 13th Gen Intel® Core™ i7 series (formerly Raptor Lake-P) processors
Memory
- 64 GB of LPDDR5 SDRAM with in-band ECC
- 256 GB of UFS NAND flash
- 64 MB NOR boot flash
- 64 kB EEPROM
Security and Management
- Microchip PolarFire™ SoC FPGA with 256 MB SPI NOR flash
- Designed with SecureCOTS™ technology to support enhanced security and trusted computing
- System voltage monitor, power-on/reset control, non-volatile write-protection control
- Trusted Platform Module (TPM) 2.0
- IPMI Controller (IPMC), supporting Tier 1, Tier 2, and Tier 3 operating modes
VPX (VITA 46) P0 I/O
- Two IPMB connections to an IPMI Controller
VPX (VITA 46) P1 I/O
- One 100GBASE-KR4 Ethernet port to P1.A
- One 25GBASE-KR Ethernet port
- One 1000BASE-KX Ethernet port
- Two x4 PCI Express Gen4-capable interfaces
- One FPGA LVDS pair
- Two maintenance serial ports, software configurable to LVCMOS or RS-232
- One single-ended FPGA GPIO
Software Support
- UEFI firmware
- Wind River VxWorks BSP
- X-ES Enterprise Linux (XEL) BSP
- Linux Yocto BSP
- Contact factory for availability of Microsoft Windows drivers and other operating systems
XMC Site
- One x4 PCI Express Gen3-capable interface
Physical Characteristics
- 3U VPX-REDI conduction- or air-cooled form factor
- Supports SOSA Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0)
- SOSA-aligned to AMPS profile MODA3-16.6.11-1-0-F2C-(E18-E15)(P4F-P4F)(E2)(G1-G2)[N]<N>
- Dimensions: 100 mm x 160 mm
- 1.0 in. pitch with Two-Level Maintenance (2LM) support
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 5
- Conformal coating available as an ordering option
- Thermal performance will vary based on CPU frequency and application
- Contact X-ES for air-cooled development options
Power Requirements
- SOSA Power: +12 V and +3.3 V_AUX (+5 V and +3.3 V not required)
- Power will vary based on configuration and usage. Please consult factory.
Accessories

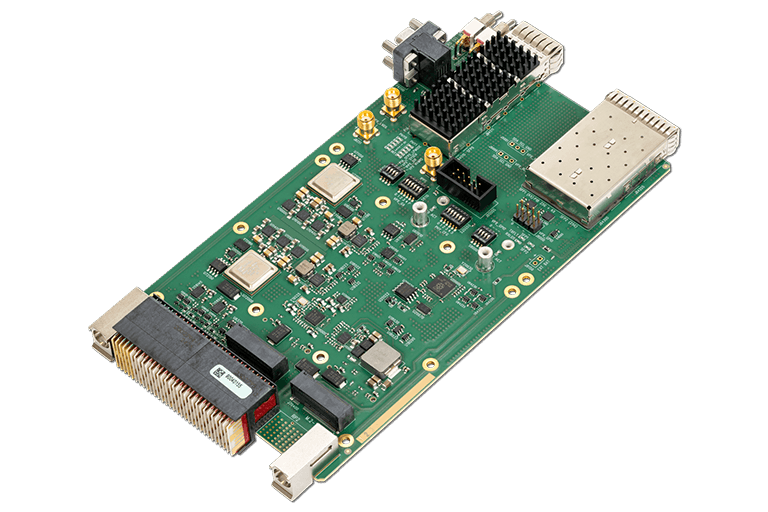

- XIt1103 (90040155) – 3U VPX Rear Transition Module with 100/25 Gigabit Ethernet and Serial
- XTend4945 (90075025) – 3U VPX Development Backplane with RTM Support for XPand1007
- XPand1007 (90075300) – Two-Slot 3U VPX Development Platform for Conduction-Cooled Modules with RTM I/O
- XTend230 (90072690) – Debug Module for Programming and Diagnostic Interfaces
