3U VPX SINGLE BOARD COMPUTER · SKU 90030750

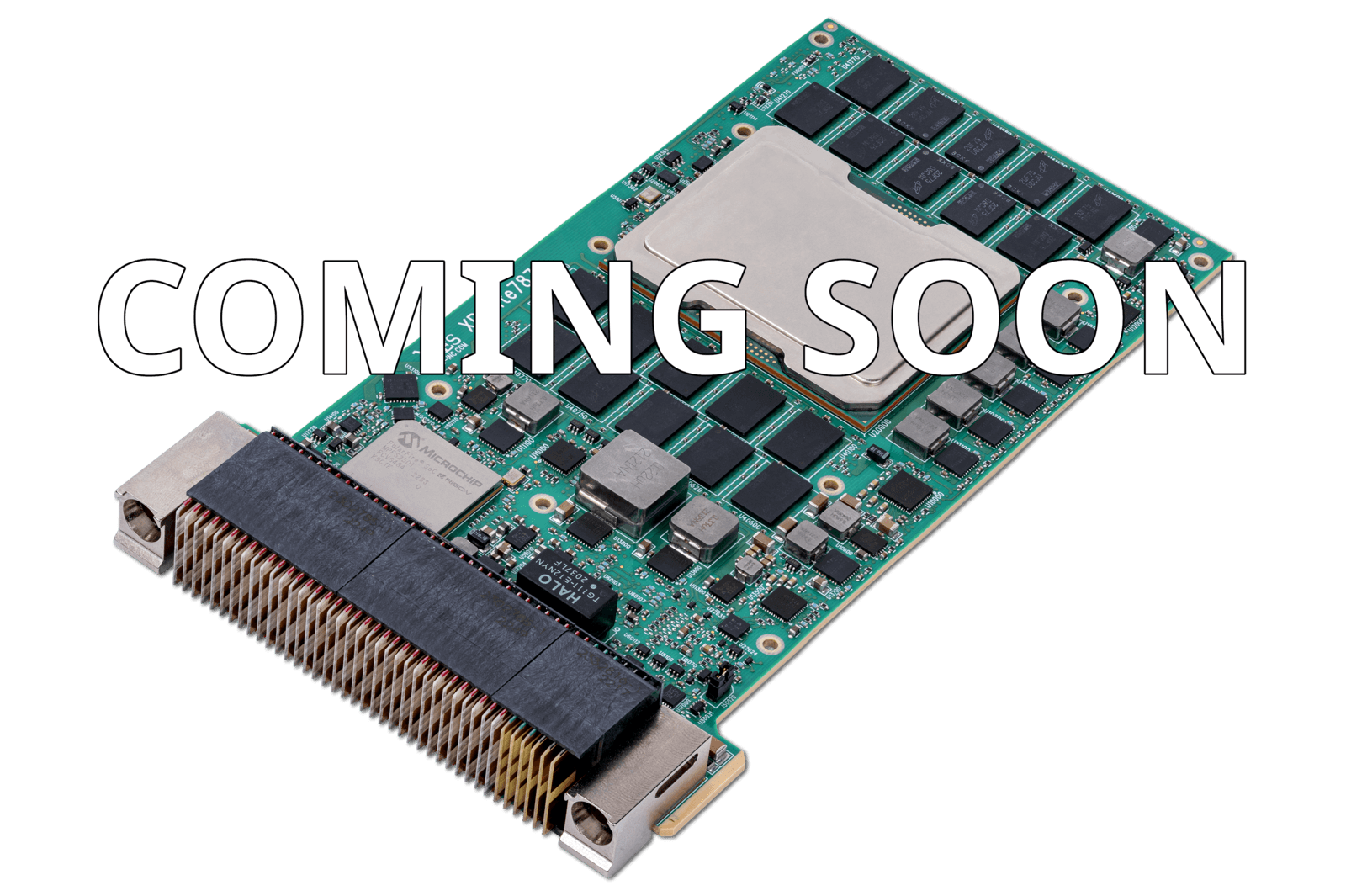

XPedite7872
The XPedite7872 is a secure, high performance single board computer based on the Intel® Xeon® D-2800 series (formerly Eddy Lake) of processors and aligned to the Sensor Open System Architecture (SOSA) Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0), making it an optimal choice for computationally heavy applications requiring maximum data and information protection.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XPedite7872
The XPedite7872 is a secure, high performance single board computer based on the Intel® Xeon® D-2800 series (formerly Eddy Lake) of processors.
Ruggedized, Standards-Based Design
The XPedite7872 is aligned to the Sensor Open System Architecture (SOSA) Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0), making it an optimal choice for computationally heavy applications requiring maximum data and information protection.
Security & Data Protection
This 3U VPX-REDI module integrates SecureCOTS™ technology with a Microchip PolarFire™ System-on-Chip (SoC) FPGA for hosting custom functions to protect data from being modified or observed and provides an ideal solution when stringent security capabilities are required.
Memory, Storage & Expansion
The XPedite7872 also accommodates up to 64 GB of DDR4 ECC SDRAM in four channels and up to 256 GB of onboard NAND flash, in addition to four x4 PCI Express Gen3-capable interfaces (also configurable as two x8 interfaces or one x16 interface).
I/O & Connectivity
The XPedite7872 provides incredible speed with one 100GBASE-KR4 Ethernet port, one 25G/10GBASE-KR Ethernet port, and one 1000BASE-KX Ethernet port.
Software Support
Wind River VxWorks, X-ES Enterprise Linux (XEL), and Linux Yocto Board Support Packages (BSPs) are available.
Processor
- Intel® Xeon® D-2800 series (formerly Eddy Lake) processor
- Up to 20 Xeon®-class cores in a single, power-efficient SoC package
- SKUs available with native extended temperature support
Memory
- 64 GB of DDR4 ECC SDRAM in four channels
- 256 GB of onboard NAND flash
- 64 MB NOR boot flash
- 64 kB EEPROM
Security and Management
- Microchip PolarFire™ SoC FPGA with 256 MB SPI flash
- Designed with SecureCOTS™ technology to support enhanced security and trusted computing
- System voltage monitor, power-on/reset control, non-volatile write-protection control
- Trusted Platform Module (TPM)
VPX (VITA 46) P1 I/O
- One 100GBASE-KR4 Ethernet port to P1.A
- One 25G/10GBASE-KR Ethernet port and one 1000BASE-KX Ethernet port to P1.B
- Ethernet ports allow up to 100 Gbps aggregate processor throughput
- One FPGA LVDS pair
- Two RS-232 and LVCMOS/LVTTL 3.3 V-configurable serial maintenance ports
- One single-ended FPGA GPIO
- One x4 PCI Express Gen3-capable interface to P1.C
- One x4 PCI Express Gen3-capable interface to P1.D
VPX (VITA 46) P2 I/O
- One x4 PCI Express Gen3-capable interface to P2.A
- One x4 PCI Express Gen3-capable interface to P2.B
Software Support
- RDMA over Converged Ethernet (RoCE) v2 internet layer protocol support
- UEFI firmware
- Wind River VxWorks BSP
- X-ES Enterprise Linux (XEL) BSP
- Linux Yocto BSP
- Contact factory for availability of Microsoft Windows drivers and other operating systems
Physical Characteristics
- 3U VPX-REDI conduction-cooled form factor
- Supports SOSA Payload / Compute Intensive profiles (SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-0 and SLT3-PAY-1F1U1S1S1U1U4F1J-14.6.13-0)
- SOSA-aligned to AMPS profile MODA3-16.6.13-1-0-F2C-(E18-E15)(2P3F-2P3F)(E2)(G1-G2)[N]<N>
- Dimensions: 100 mm x 160 mm
- 0.8 in. pitch without solder-side cover
- 1.0 in. pitch with Two-Level Maintenance (2LM) support
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 5
- Conformal coating available as an ordering option
- Thermal performance will vary based on CPU frequency and application
- Contact X-ES for air-cooled development options
Power Requirements
- SOSA Power: +12 V and +3.3 V_AUX (+5 V and +3.3 V not required)
Accessories
- XIt1103 (90040155) – 3U VPX Rear Transition Module with 100/25 Gigabit Ethernet and Serial
- XPand1007 (90075300) – Two-Slot 3U VPX Development Platform for Conduction-Cooled Modules with RTM I/O
- XPand1203 (90072665) – 3U VPX Development Platform for Up to Eight Conduction-Cooled Modules
- XPand1205 (90075035) – 3U VPX Development Platform for Up to Eight Conduction-Cooled Modules
- XTend230 (90072690) – Debug Module for Programming and Diagnostic Interfaces
XPedite7872
Intel® Xeon® D-2800 Processor-Based 3U VPX-REDI Module with 64 GB of DDR4, 100 Gigabit Ethernet, and SecureCOTS™
