3U VPX ETHERNET SWITCH · SKU 90030660
XChange3031
The XChange3031 is a conduction-cooled 3U VPX Ethernet switch module. The XChange3031 provides one backplane 40GBASE-KR4 Ethernet port, six backplane 10GBASE-KR Ethernet ports, four backplane 10GBASE-T Ethernet ports, and up to eight backplane 1000BASE-T Ethernet ports.
Product Lifecycle
X-ES also offers comprehensive configuration and obsolescence management services, providing customers with direct control over non-interchangeable changes and extending product availability and serviceability well beyond standard end-of-life milestones.
Engineered for Extended Reliability
All X-ES products are designed and manufactured 100% in the USA with components from trusted supply chains in order to deliver rugged, reliable performance in the most demanding environments.
Built with components rated for extreme conditions and validated through rigorous testing, our solutions minimize obsolescence risk and lower total cost of ownership across the full program lifespan.
Introduction to XChange3031

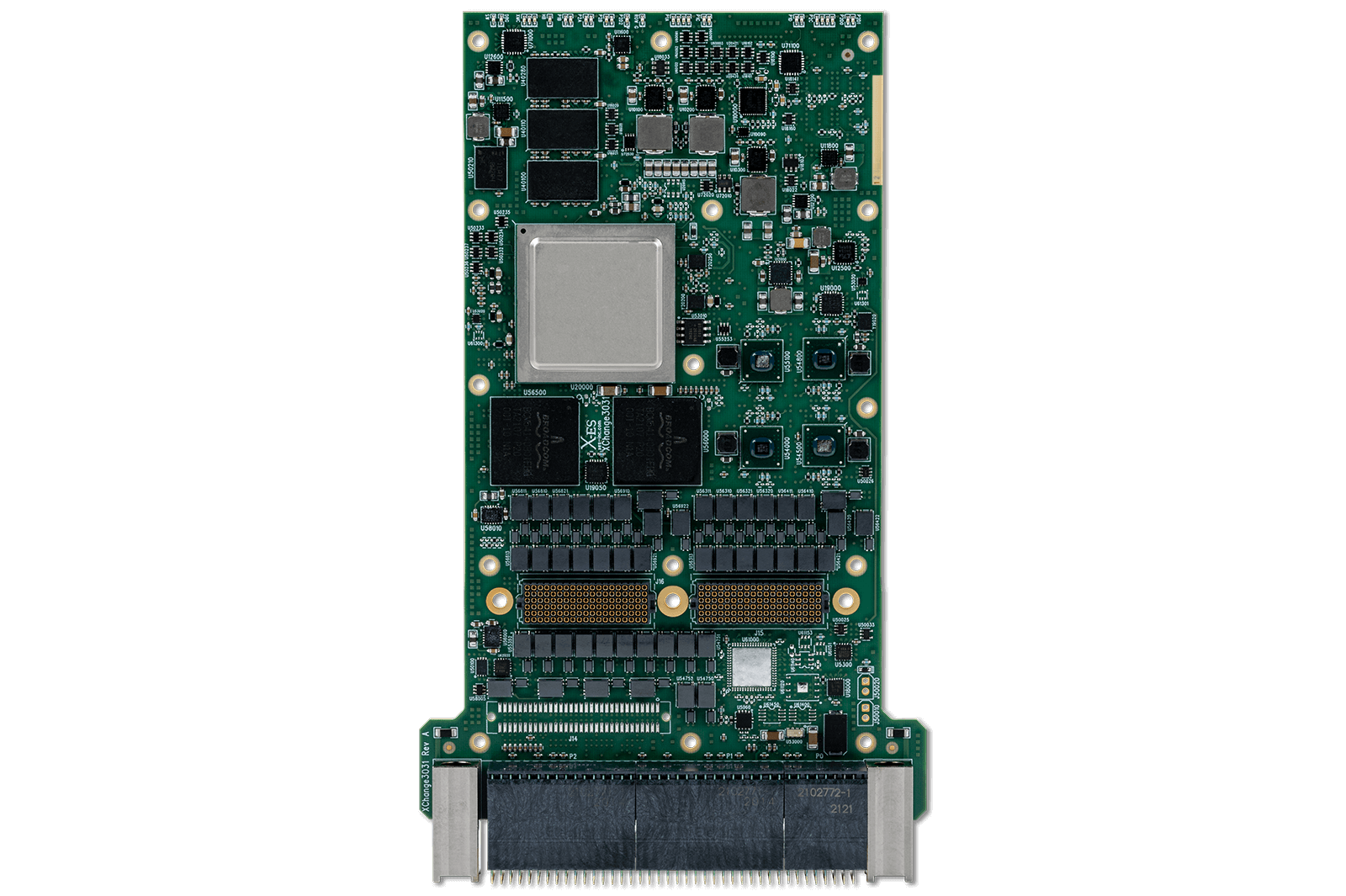

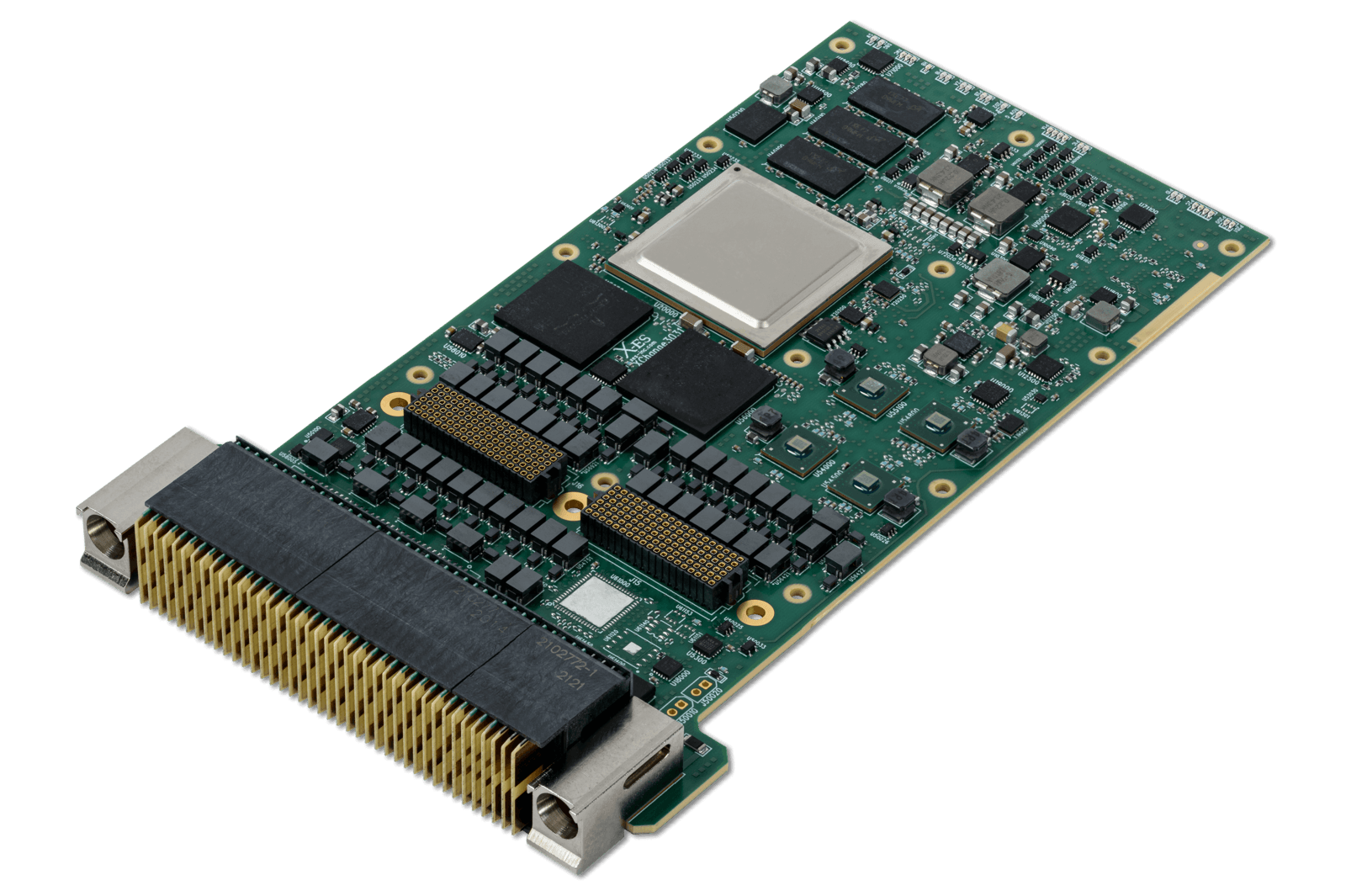

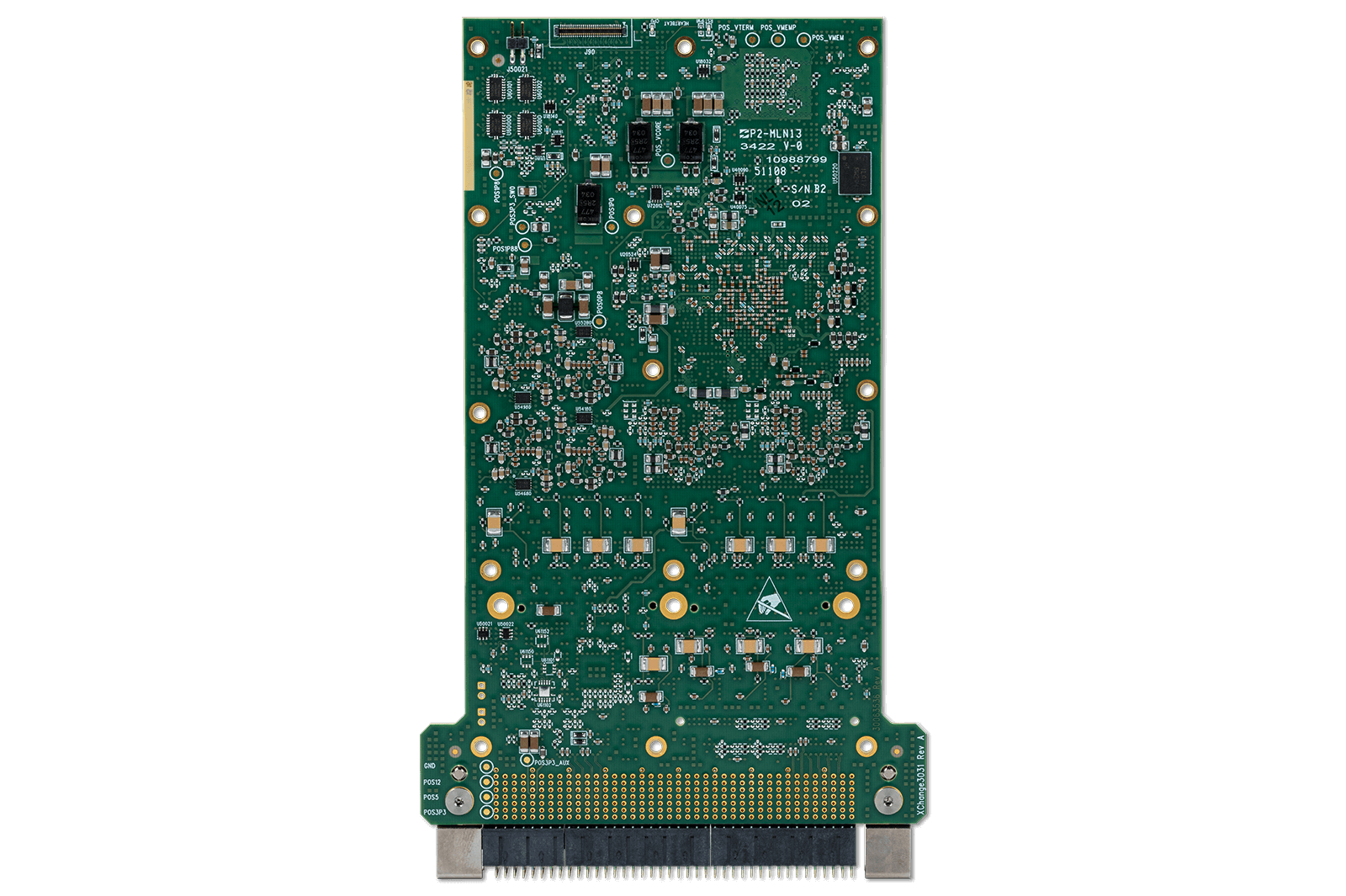

The XChange3031 is a conduction-cooled 3U VPX Ethernet switch module.
High-Performance Switching
The XChange3031 provides one backplane 40GBASE-KR4 Ethernet port, six backplane 10GBASE-KR Ethernet ports, four backplane 10GBASE-T Ethernet ports, and up to eight backplane 1000BASE-T Ethernet ports.
Performance & Standards Compliance
The XChange3031 delivers full wire-speed across all of its ports and supports jumbo frames up to 10 kB. It also supports IPv6 and a comprehensive set of IETF RFCs and IEEE protocols.
Managed Layer 2 Switching
As a fully managed Layer 2 switch, the XChange3031 has support for features such as VLANs (IEEE 802.1Q), LACP, STP, RSTP, PVRST, MSTP, SNMP, flow control, port mirroring, port authentication (IEEE 802.1x), Quality of Service (QoS), ACL, IGMP, and LLDP.
Layer 3 Routing Support
The XChange3031 can also optionally host an XChange6300 Cisco IOS-XE® Gigabit Ethernet Embedded Services Router.
Ethernet
- One 40GBASE-KR4 Ethernet port (can be configured as four 10GBASE-KR or four 1000BASE-X)
- Six 10GBASE-KR Ethernet ports (can be configured as six 1000BASE-X)
- Four 10GBASE-T Ethernet ports
- Up to eight 1000BASE-T ports (see block diagram for mezzanine Ethernet port support options)
- IPv4 and IPv6 support
- Support for jumbo frames up to 10 kB
- Non-blocking, full wire-speed
- IEEE 1588v2 transparent clocking support
XMC
- One XMC site (available on configurations with integrated mezzanine card)
- J16 RS-232 serial port routed to P1
- One 2500BASE-X Ethernet port, and two 1000BASE-X Ethernet ports from J16 connect to XChange3031 when paired with XChange6300 Embedded Services Router
- Support for up to two 1000BASE-T Ethernet ports from J14 to P2 or the switch (optional)
Ethernet Management Features
- Layer 2 switching (including VLANs)
- Extensive IEEE protocol and IETF RFC support
- Configuration through CLI or SNMP
- 4 MB packet buffer
Additional Features
- VITA 46.11 Tier 1 and Tier 2 IPMI Controller (IPMC) (optional, contact X-ES for details)
Physical Characteristics
- 3U VPX form factor
- Dimensions: 100 mm x 160 mm
- 0.8 in. or 1.0 in. pitch
- Compliant to the VITA 48.2 Type 1, Two-Level Maintenance (2LM) standard (optional, contact X-ES for details)
Environmental Requirements
Contact factory for appropriate board configuration based on environmental requirements.
- Supported ruggedization levels (see the X-ES Ruggedization Chart): 5
- Conformal coating available as an ordering option
Power Requirements
- Power will vary based on configuration and usage. Please consult factory.
Accessories
- XIt3013 (90060350) – 3U VPX Rear Transition Module Providing Ethernet Breakout
- XIt1190 (90040130) – 3U VPX Rear Transition Module with 10 zQSFP+ Connectors and USB-C DUART Serial
- XPand1007 (90075300) – 3U VPX Development Platform for Conduction-Cooled Modules
- XPand1205 (90075035) – 3U VPX Development Platform for Up to Eight Modules
- XPand6240 (90075215) – Intel® Xeon® D-1700 Processor-Based Rugged Small Form Factor (SFF) COTS System
- XChange6300 (90015290) – Embedded Services Router (ESR) with Cisco IOS-XE® on an XMC/PMC Module
XChange3031
3U VPX 40/10 Gigabit Ethernet Switch with Layer 2 Switching and Optional Layer 3 Routing
