XPedite7676

Intel® Xeon® D Processor-Based 3U VPX-REDI SBC with Dual 10GbE and SecureCOTS™

The XPedite7676 is a secure, high-performance, 3U VPX-REDI, single board computer based on the Intel® Xeon® D-1500 family processors. The Intel® Xeon® D processor can provide up to 16 Xeon®-class cores in a single, power-efficient System-on-Chip (SoC) package.

The XPedite7676 integrates SecureCOTS™ technology with a SmartFusion®2 security SoC for hosting custom functions to protect data from being modified or observed and provides an ideal solution when stringent security capabilities are required.

Not Recommended for New Designs

Please contact X-ES Sales for assistance with choosing a recommended replacement product.

Learn more about this product below »
SKU: 90030525 Category:
XPedite7676 3U VPX Intel Xeon D SBC

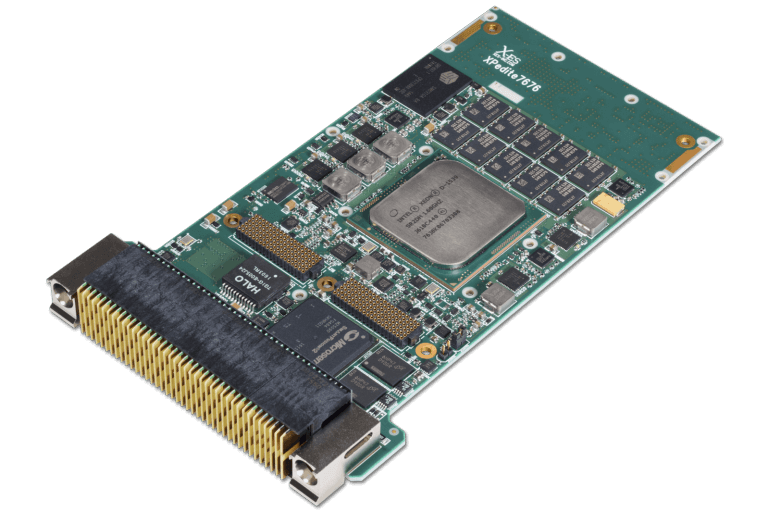

XPedite7676 3U VPX Single Board Computer (SBC) Top ShotXPedite7676 3U VPX Single Board Computer (SBC) Bottom Shot

The XPedite7676 is a secure, high-performance, 3U VPX-REDI, single board computer based on the Intel® Xeon® D-1500 family processors. The Intel® Xeon® D processor can provide up to 16 Xeon®-class cores in a single, power-efficient System-on-Chip (SoC) package. The XPedite7676 is an optimal choice for computationally heavy applications requiring maximum data and information protection.

The XPedite7676 integrates SecureCOTS™ technology with a SmartFusion®2 security SoC for hosting custom functions to protect data from being modified or observed and provides an ideal solution when stringent security capabilities are required. The SmartFusion®2 can control, intercept, and monitor the Xeon® D subsystem, implement penalties, and interface to the system through I/O directly connected to the VPX backplane. Circuit board enhancements and optimized Two-Level Maintenance (2LM) metalwork provide additional protection to the physical hardware.

The XPedite7676 maximizes network performance with two 10 Gigabit 10GBASE-KR Ethernet interfaces and one 10/100/1000BASE-T Gigabit Ethernet interface. It accommodates up to 16 GB of DDR4-2133 ECC SDRAM in two channels and up to 32 GB of onboard SATA NAND flash in addition to numerous I/O ports, including USB, SATA, and RS-232/422/485 serial through the backplane connectors. The XPedite7676 provides additional expansion capabilities by integrating an XMC site with X24s+X8d+X12d I/O to the backplane.

Wind River VxWorks and X-ES Enterprise Linux Support Packages (XEL) are available. The XPedite7676 uses coreboot, powered by Intel®’s Firmware Support Package (FSP), to provide fast boot times and significantly simplify code traceability over legacy BIOS implementations.

Features

  • Supports Intel® Xeon® D-1500 family processors (formerly Broadwell-DE)
  • Up to 16 Xeon®-class cores in a single, power-efficient SoC package
  • 4, 8, or 12 core SKUs available with native extended temperature support
  • SecureCOTS™ for secure and trusted processing
  • SmartFusion®2 SoC with 1 GB DDR3-667 ECC SDRAM and 32 MB SPI flash
  • 3U VPX (VITA 46) module
  • Compatible with multiple VITA 65 OpenVPX™ slot profiles
  • Ruggedized Enhanced Design Implementation (REDI) per VITA 48
  • Up to 16 GB of DDR4-2133 ECC SDRAM in two channels
  • Up to 32 GB of SLC NAND flash
  • XMC site
  • XMC I/O mapping P2w1-X24s+X8d+X12d
  • Two x4 PCI Express backplane fabric interconnects
  • Two 10 Gigabit Ethernet ports and one Gigabit Ethernet port
  • Two SATA ports
  • Two USB 2.0 ports
  • Two RS-232/422/485 serial ports
  • coreboot firmware powered by Intel® FSP
  • Wind River VxWorks BSP
  • X-ES Enterprise Linux (XEL) BSP
  • Contact factory for availability of Green Hills INTEGRITY, QNX Neutrino, and LynuxWorks LynxOS BSPs, as well as Microsoft Windows drivers

Technical Specs

Processor

  • Intel® Xeon® D-1500 family processors (formerly Broadwell-DE)
  • Up to 16 Xeon®-class cores in a single, power-efficient SoC package
  • 4, 8, or 12 core SKUs available with native extended temperature support

Memory

  • Up to 16 GB of DDR4-2133 ECC SDRAM in two channels
  • Up to 32 GB of SLC NAND flash
  • 32 MB NOR boot flash
  • 64 kB EEPROM

Security and Management

  • SmartFusion®2 security FPGA with 1 GB DDR3-667 ECC SDRAM and 32 MB SPI flash
  • SmartFusion®2 zeroization
  • System voltage monitor, power-on/reset control, non-volatile write-protection control
  • Non-Deterministic Random Number Generator, Encryption
  • Environmental sensors (see product manual)
  • Trusted Platform Module (TPM) 1.2 or 2.0

VPX (VITA 46) P0 I/O

  • Two SmartFusion®2 I²C ports

VPX (VITA 46) P1 I/O

  • x4 PCI Express Gen3-capable interface to P1.A
  • x4 PCI Express Gen3-capable interface to P1.B
  • Two 10GBASE-KR Ethernet ports
  • One 10/100/1000BASE-T Gigabit Ethernet port
  • Two SATA ports capable of 6 Gb/s
  • Two USB 2.0 ports
  • Four GPIO from SmartFusion®2

VPX (VITA 46) P2 I/O

  • XMC P16 I/O, mapping P2w1-X24s+x8d+X12d per VITA 46.9
  • Two RS-232/422/485 serial ports

XMC Site

  • x8 PCI Express Gen3-capable port
  • Six SmartFusion®2 GPIO

Software Support

Physical Characteristics

  • 3U VPX-REDI conduction- or air-cooled form factor
  • Dimensions: 100 mm x 160 mm
  • 0.8 in. pitch without solder-side cover
  • 1.0 in. pitch with Two-Level Maintenance (2LM) support (optional)

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option
  • Thermal performance will vary based on CPU frequency and application

Power Requirements

  • Power will vary based on configuration and usage. Please consult factory.

Accessories

  • XIt1083 (90040035) - L-Shaped 3U VPX RTM with Ethernet, SATA, USB, Serial, and HDMI
  • XTend218 (90072500) - Debug Module/Cable with Serial/I²C/USB/JTAG/SPI and Power Supply Programming
