Features
- Intel® Core™2 Duo processor at up to 1.8 GHz
- 3U CompactPCI form factor
- Conduction or air cooling
- Extended shock and vibration tolerance
- Up to 4 GB of DDR2 ECC SDRAM
- Up to 8 GB of NAND flash
- Configurable as system controller or peripheral
- Hosts a PrPMC or XMC
- Two 10/100/1000 Base-T Ethernet ports out J2
- Two USB 2.0 high-speed ports out J2
- Two RS-232/RS-422/RS-485 serial ports out J2
- Front I/O available via plugover module
- Linux LSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
- Drivers for Windows XP and Windows Vista

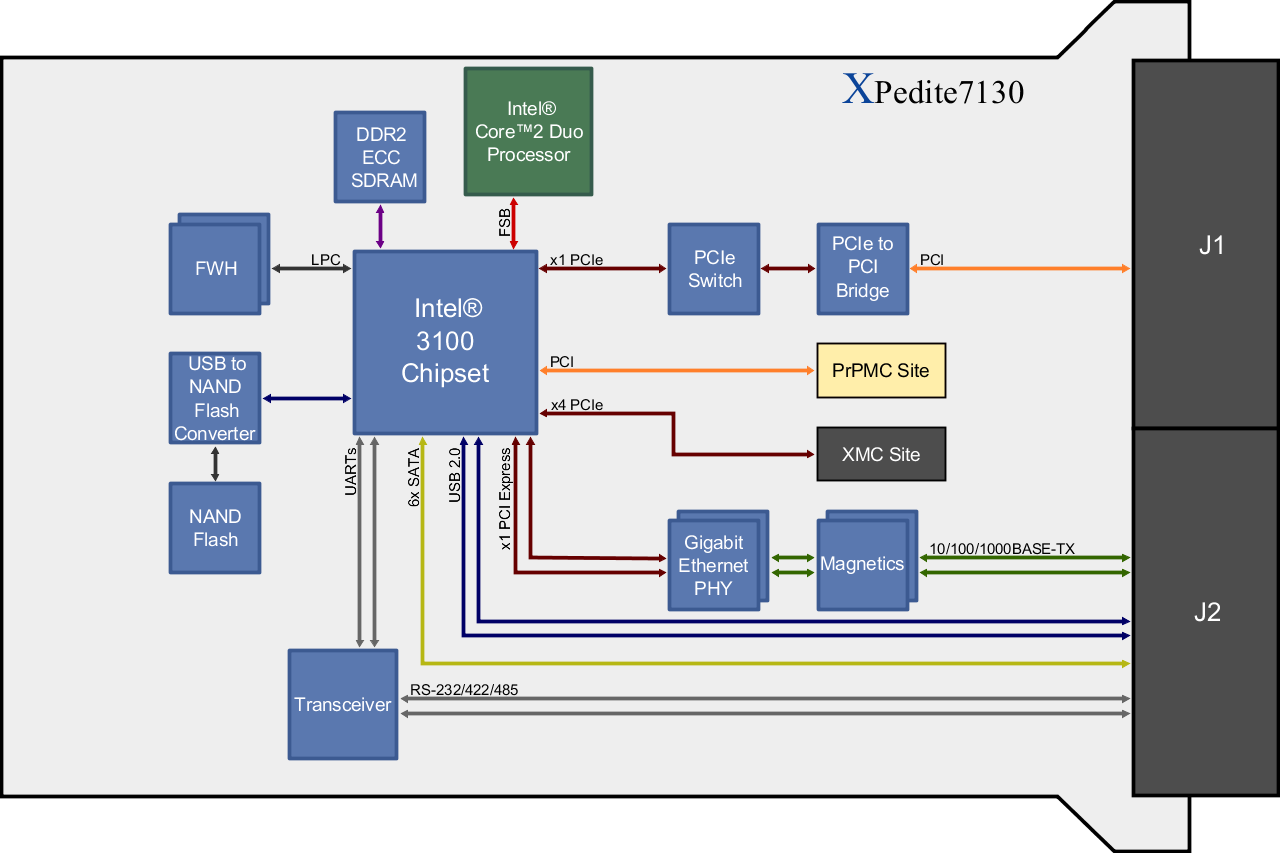

Description
The XPedite7130 is a high-performance, low-power 3U CompactPCI single-board computer based on the Intel Core 2 Duo processor. With a x4 PCIe XMC site and PMC site high-speed interconnects, the XPedite7130 is ideal for high-bandwidth data-processing applications.
The XPedite7130 accommodates up to 4 GB of DDR2 SDRAM to support memory-intensive applications and hosts numerous I/O ports including Gigabit Ethernet, SATA, USB, and RS-232/RS-422/RS-485 in a small form factor through the J2 backplane connector.
The XPedite7130 can be used in either the system slot or peripheral slot of a Compact PCI backplane. Wind River VxWorks, QNX Neutrino, and Green Hills INTEGRITY Board Support Packages (BSPs) are available, as well as a Linux LSP and Windows drivers.
Technical Specifications
Processor
- Intel Core 2 Duo at up to 1.8 GHz
- 800-MHz FSB
- Up to 6 MB of L2 cache
Memory
- Up to 4 GB of DDR2-400 ECC SDRAM
- 2 MB firmware hub flash (or 1 MB with redundancy)
- 8 GB of NAND flash
J1 cPCI Interface
- 32-bit PCI interface operating at 33 or 66 MHz
- System controller capable with onboard clocking and arbitration
- Peripheral slot capable
J2 cPCI Interface
- Two 10/100/1000Base-T Ethernet ports
- Two RS-232/422/485 serial ports
- PrPMC/XMC P14 I/O
- Two SATA ports
- Two USB 2.0 ports
- Four GPIO signals
PrPMC/XMC Site
- 32-bit, 66-MHz PCI bus (PMC interface)
- x4 PCIe port (XMC interface)
- VITA 42 compliant
- P14 I/O routed to J2
Front Panel I/O
- Front-panel RJ45 Ethernet, USB, and mini-DB9 RS-232 serial ports available via optional plugover module
Software Support
- Linux LSP
- VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
- Windows drivers
Physical Characteristics
- 3U CompactPCI
- 160 mm x 100 mm
Environmental Requirements
- Supported ruggedization levels (see chart): Level 1, Level 2, Level 3, Level 4, Level 5
- Humidity: 0% to 95% non-condensing
Power Requirements
- Maximum power consumption: 35 W (with 1.8-GHz processor), 28 W (with 1.4/1.2-GHz processor)
