Features
- Intel® Core™2 Duo processor at up to 1.8 GHz
- 3U VPX (VITA 46) module
- Ruggedized Enhanced Design Implementation (REDI)
- Conduction or air cooling
- Up to 4 GB of DDR2-400 ECC SDRAM
- Up to 4 MB firmware hub flash (or 2 MB with redundancy)
- Up to 4 GB of NAND flash
- PrPMC/XMC interface with rear and front panel I/O support
- Two x4 PCI Express Fat Pipe P1 fabric interconnects
- Up to two rear-panel Gigabit Ethernet ports with integrated magnetics
- Two optional rear-panel USB 2.0 high-speed ports
- Two optional rear-panel SATA ports
- Up to two rear-panel RS-232/RS-422/RS-485 serial ports
- Front I/O available via plugover module
- Linux LSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
- Windows XP/Vista drivers
Description
The XPedite7170 is a high-performance, low-power 3U VPX-REDI single-board computer based on the Intel Core 2 Duo processor. With two x4 PCI Express Fat Pipe P1 interconnects and up to two Gigabit Ethernet ports, the XPedite7170 is ideal for high-bandwidth data-processing applications, or as a mission computer in one of our ATR system offerings.
The XPedite7170 accommodates up to 4 GB of DDR2 ECC SDRAM to support memory-intensive applications and hosts numerous I/O ports including Gigabit Ethernet, USB 2.0, SATA, and RS-232/RS-422/RS-485 through the backplane connectors.
The XPedite7170 can be used in either the system slot or peripheral slot of a VPX backplane. Wind River VxWorks, QNX Neutrino, and Green Hills INTEGRITY Board Support Packages (BSPs) are available, as well as a Linux 2.6 LSP and Windows drivers.

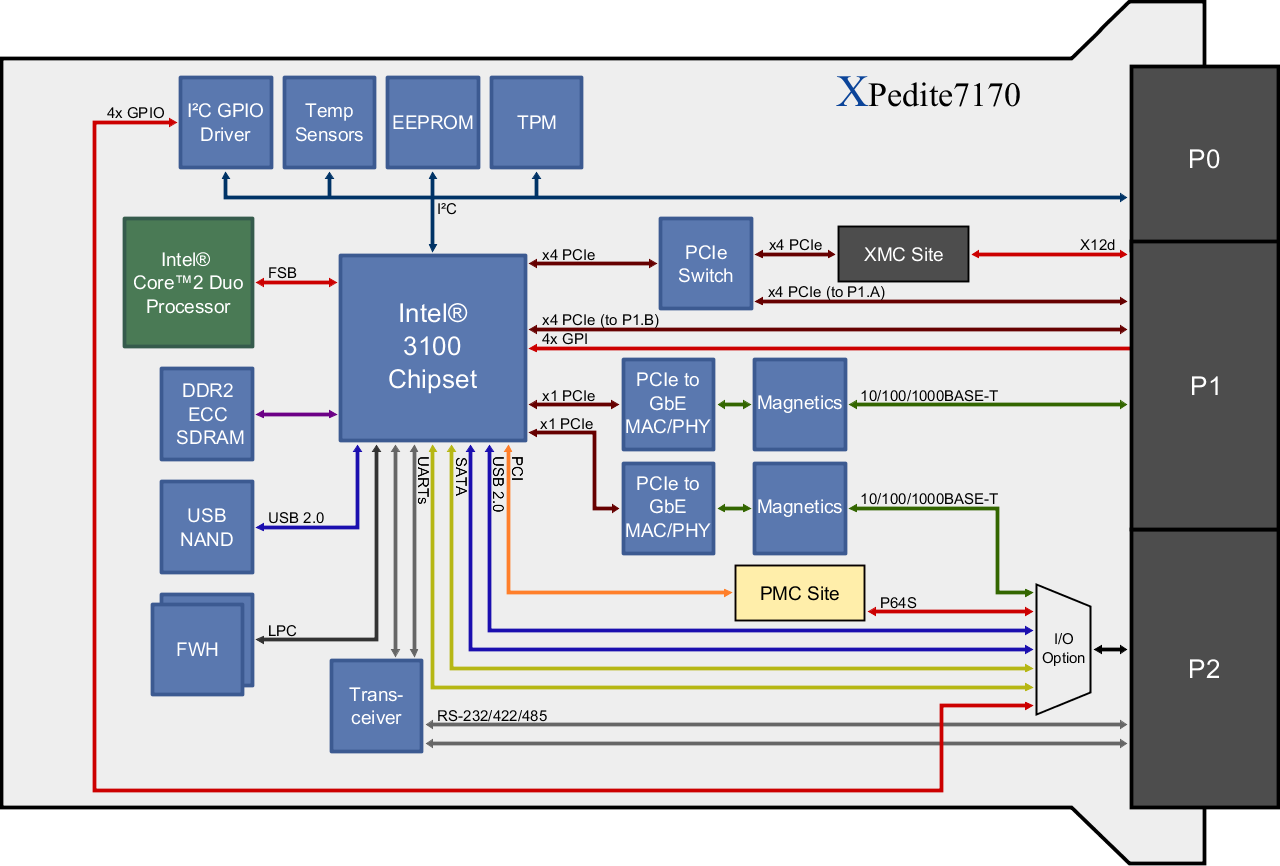

Technical Specifications
Processor
- Intel Core 2 Duo at up to 1.8 GHz
- 800-MHz FSB
- Up to 6 MB of L2 cache
Memory
- Up to 4 GB of DDR2-400 ECC SDRAM
- Up to 4 MB firmware hub flash (or 2 MB with redundancy)
- Up to 4 GB of NAND flash
VPX (VITA 46) P0 I/O
- I²C port
VPX (VITA 46) P1 I/O
- x4 PCI Express Fat Pipe interface to P1.A
- x4 PCI Express Fat Pipe interface to P1.B
- One 10/100/1000-Mbps Gigabit Ethernet port
- X12d XMC P16 I/O
VPX (VITA 46) P2 I/O
- One 10/100/1000-Mbps Gigabit Ethernet port (optional)
- Two SATA ports (optional)
- Two USB 2.0 ports (optional)
- Up to two RS-232/RS-422/RS-485 serial ports
- 3.3V GPIO signals (optional)
- P64s PMC P14 I/O
PrPMC/XMC Site
- 32-bit, 33-MHz PCI bus (PMC interface)
- x4 PCIe port (XMC interface)
- P64s P14 I/O support
- X12d P16 I/O support
Front Panel I/O
- Front-panel RJ45 Ethernet, USB, and mini-DB9 RS-232 serial ports available via optional plugover module
Software Support
- Linux LSP
- Wind River VxWorks BSP
- QNX Neutrino BSP
- Green Hills INTEGRITY BSP
- Windows drivers
Physical Characteristics
- 3U VPX-REDI conduction- or air-cooled form factor
- Dimensions: 100 mm x 160 mm
- 0.8-in. pitch without solder side cover
- 0.85 and 1.0-in. pitch with solder side cover
Environmental Requirements
- Supported ruggedization levels (see chart below): Level 1, Level 2, Level 3, Level 4, Level 5
- Humidity: 0% to 95% non-condensing
Power Requirements
- Maximum power consumption: 31 W (with 1.8-GHz processor), 26 W (with 1.4/1.2-GHz processor)
