XPedite7170

Intel® Core™2 Duo Processor-Based Conduction- or Air-Cooled 3U VPX-REDI Single Board Computers (SBC)

The XPedite7170 accommodates up to 4 GB of DDR2-400 ECC SDRAM to support memory-intensive applications, and hosts numerous I/O ports including Gigabit Ethernet, USB 2.0, SATA, and RS-232/422/485 through the P2 backplane connector.

End of Life

Please see recommended replacement product, the XPedite7470 3U VPX-REDI SBC.

Learn more about this product below »
REQUEST A QUOTE ASK A QUESTION

Contact us directly at +1 (608) 833-1155

SKU: 90030070 Category:

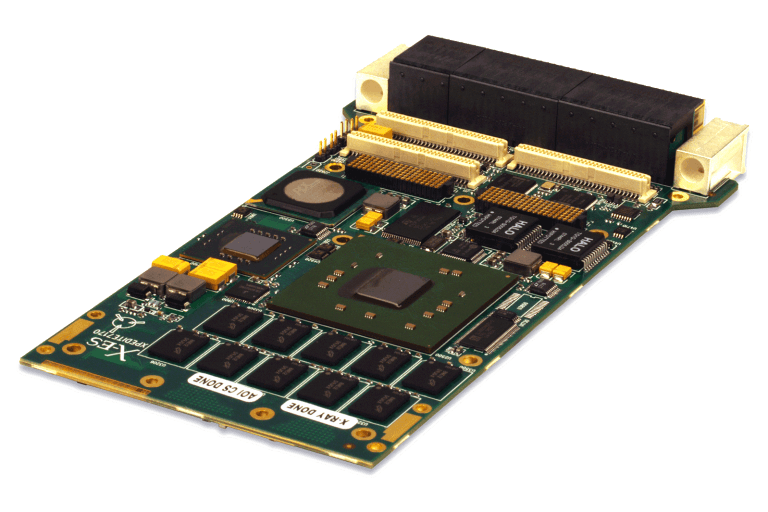

XPedite7170 3U VPX-REDI SBC

The XPedite7170 is a high-performance, low-power 3U VPX-REDI single board computer based on the Intel® Core™2 Duo processor. With two x4 PCI Express P1 interconnects and up to two Gigabit Ethernet ports, the XPedite7170 is ideal for high-bandwidth data-processing applications.

The XPedite7170 accommodates up to 4 GB of DDR2-400 ECC SDRAM to support memory-intensive applications, and hosts numerous I/O ports including Gigabit Ethernet, USB 2.0, SATA, and RS-232/422/485 through the P2 backplane connector.

The XPedite7170 can be used in either the system slot or peripheral slot of a VPX backplane. Linux 2.6, Wind River VxWorks, QNX Neutrino, and Green Hills INTEGRITY Board Support Packages (BSPs), as well as Microsoft Windows drivers, are available for the XPedite7170.

Features

  • Intel® Core™2 Duo processor at up to 1.8 GHz
  • 3U VPX (VITA 46) module
  • Ruggedized Enhanced Design Implementation (REDI)
  • Conduction or air cooling
  • Up to 4 GB of DDR2-400 ECC SDRAM
  • Up to 2 MB firmware hub flash (or 1 MB with redundancy)
  • 4 GB of NAND flash
  • XMC/PrPMC interface with rear and front panel I/O support
  • Two x4 PCI Express P1 fabric interconnects
  • Two rear panel Gigabit Ethernet ports with integrated magnetics (optional)
  • Two rear panel USB 2.0 high-speed ports (optional)
  • Two rear panel SATA ports (optional)
  • Up to two rear panel RS-232/422/485 serial ports
  • Front I/O available via plugover module
  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP
  • Microsoft Windows drivers

Technical Specs

Processor

  • Intel® Core™2 Duo at up to 1.8 GHz
  • Up to 200 MHz (800 MT/s) FSB
  • Up to 6 MB of L2 cache

Memory

  • Up to 4 GB of DDR2-400 ECC SDRAM
  • Up to 2 MB firmware hub flash (or 1 MB with redundancy)
  • 4 GB of NAND flash

Front Panel I/O

  • Front panel RJ-45 Ethernet, USB, and micro-DB-9 RS-232 serial ports available via optional plugover module

VPX (VITA 46) P1 I/O

  • x4 PCI Express interface to P1.A
  • x4 PCI Express interface to P1.B
  • One Gigabit Ethernet port
  • X12d XMC P16 I/O

VPX (VITA 46) P2 I/O

  • One Gigabit Ethernet port
  • Two SATA ports capable of 1.5 Gb/s (optional)
  • Two USB 2.0 ports (optional)
  • Up to two RS-232/422/485 serial ports
  • I²C port
  • 3.3 V GPIO signals
  • P64s PMC P14 I/O

XMC/PrPMC Site

  • 32-bit, 33 MHz PCI bus (PMC interface)
  • x4 PCIe port (XMC interface)
  • P64s P14 I/O support
  • X12d P16 I/O support

Software

  • Linux BSP
  • Wind River VxWorks BSP
  • QNX Neutrino BSP
  • Green Hills INTEGRITY BSP
  • Microsoft Windows drivers

Physical Characteristics

  • 3U VPX-REDI conduction- or air-cooled form factor
  • Dimensions: 100 mm x 160 mm
  • 0.8 in. pitch without solder-side cover
  • 0.85 and 1.0 in. pitch with solder-side cover

Environmental Requirements

Contact factory for appropriate board configuration based on environmental requirements.

  • Supported ruggedization levels (see the X-ES Ruggedization Chart): 1, 3, 5
  • Conformal coating available as an ordering option

Power Requirements

  • Maximum power consumption: 37 W (with 1.8 GHz processor), 28 W (with 1.2 GHz processor)

Accessories

Documentation

Datasheet

To view all of the information about this product in a PDF, please download the datasheet.

Download Datasheet

Technical Documents

SupportNet is your source for product manuals, technical support, and software downloads.

Access SupportNet

Block Diagram

Additional Information

Replacement Product

View the recommended replacement product, XPedite7470

View Product

Datasheet

View the XPedite7170
Datasheet PDF


Download Datasheet
